SEN-12041 - SparkFun Capacitive Touch Breakout Board - AT42QT1010
Special Price
USD 434.8
Inclusive of all taxes
Stock: Available
7 days service center Replacement
Delivery
1 Year Warranty
Pay on Delivery
10 days Return
Secure Transactions
| Ships from | elemart |
|---|---|
| Sold by | davesh |
About this item

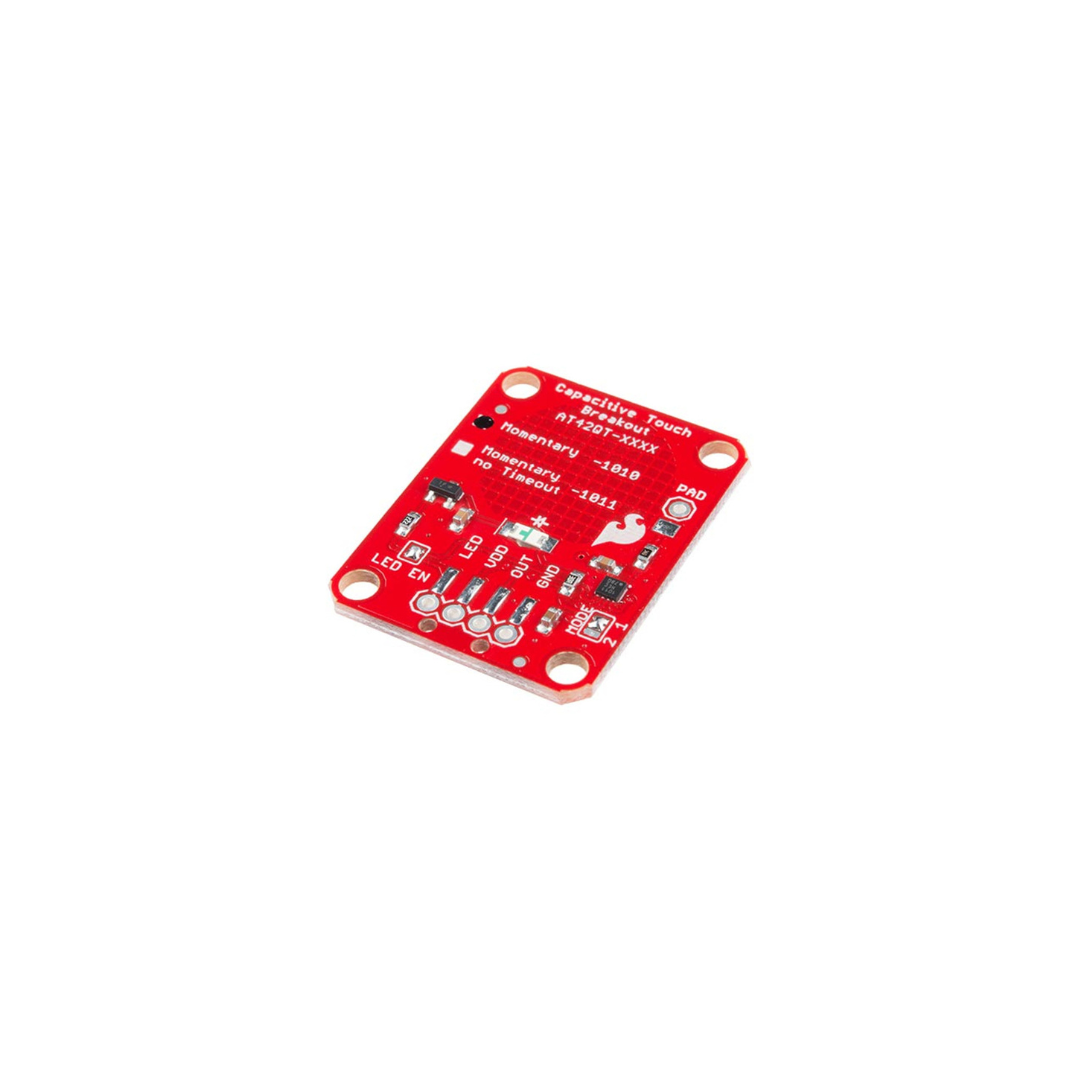

The SparkFun Capacitive Touch Breakout Board (SEN-12041) is a compact module featuring the AT42QT1010 capacitive touch sensor. This single-button sensor detects touch via a conductive pad and outputs a digital HIGH signal when activated. It operates on a supply voltage ranging from 1.8V to 5V and includes an onboard LED that lights up upon touch, which can be independently controlled by modifying a jumper. Additionally, a PAD pin is available for connecting an external electrode, allowing for customization of the touch interface. The board is ideal for integrating touch functionality into projects without mechanical buttons.
Specifications
| Operating Voltage: | 1.8V to 5V |
|---|---|
| Mounting Holes: | 4 x 3.2 mm holes for easy attachment |
| Package Dimensions: | 25.4 mm x 25.4 mm |
| Interface: | Digital I/O (single touch detection) |
| Output Pin: | OUT (High on touch, Low otherwise) |
