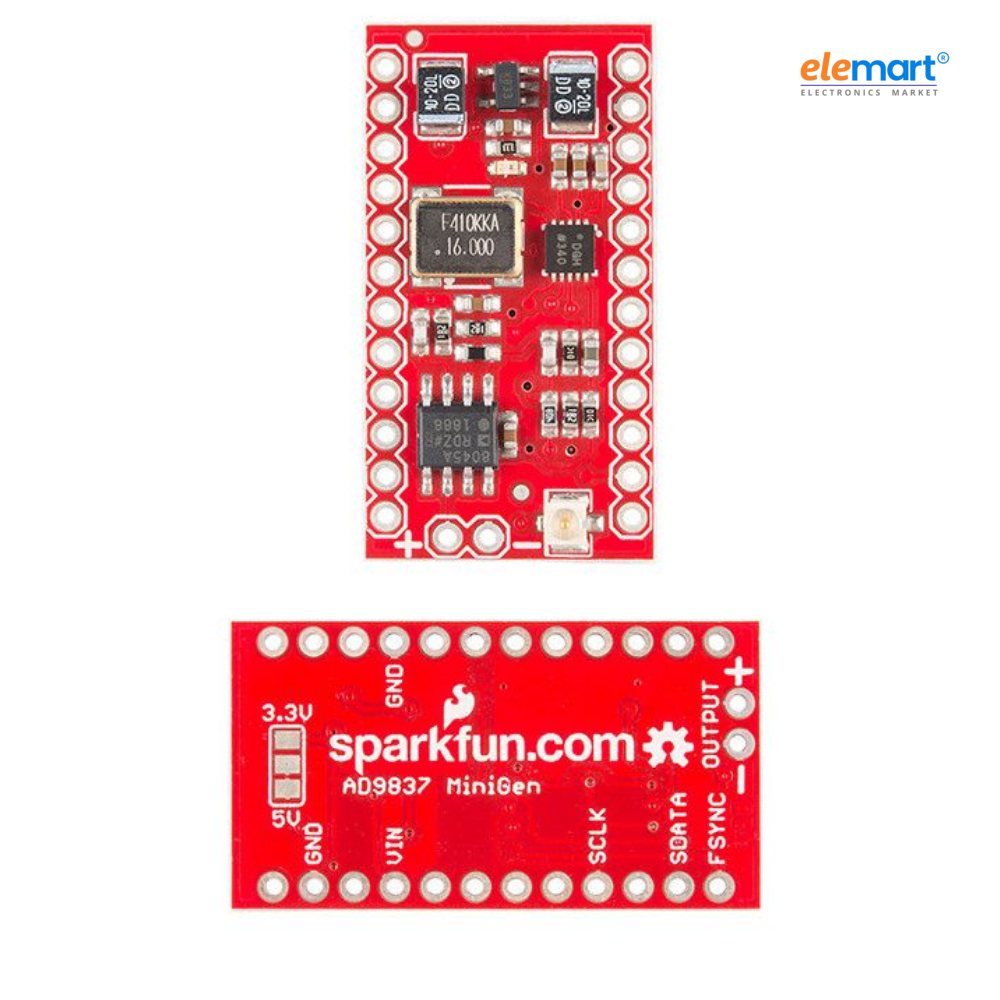

MiniGen Signal Generator Shield (for Arduino Pro Mini) SparkFun

₹3,035.00 ₹4,778.00 36% Off (Incl. of all taxes)
₹2,488.70
+ ₹546.30 GST
Stock: Outofstock
Quantity:
For B2B orders, contact us on

About this item

This is the SparkFun MiniGen Signal Generator, a small shield for the Arduino Pro Mini that is capable of generating sine, square, or triangle waves at up to 3MHz, and approximately 1Vp-p. Though the MiniGen is technically a shield it can, in fact, operate as a stand-alone board capable of the the same functionality as it would if it were placed on top of a Pro Mini.

Specifications

Category Arduino And Compatible Boards
Frequency Range: Up to 3 MHz
DC Offset: Vcc/2 (cannot be varied)
Operating Voltage: 3.3V (5V when jumper is soldered)
DAC: 10-bit resolution
