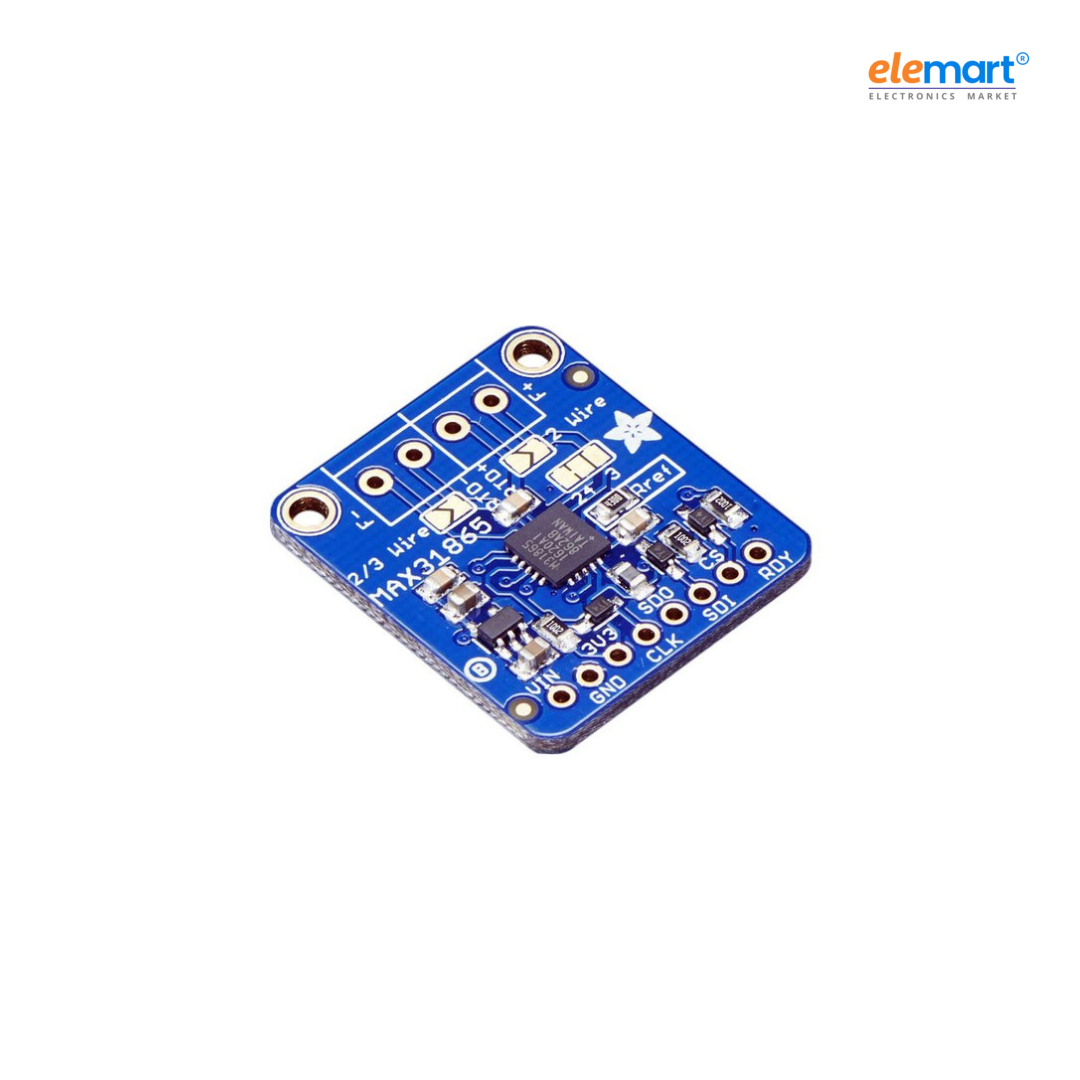

PT100 RTD Temperature Sensor Amplifier - MAX31865

Sold Out
₹1,839.00 (Incl. of all taxes)
₹1,507.98
+ ₹331.02 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The MAX31865 is a precision RTD-to-digital converter designed for accurate temperature measurements using PT100 or PT1000 sensors. It features a 15-bit ADC with a nominal temperature resolution of 0.03125°C and offers a total accuracy of ±0.5°C over the full operating range. The device supports 2-, 3-, and 4-wire RTD configurations and communicates via SPI, making it compatible with various microcontrollers. Integrated fault detection, including open RTD and short-circuit protection, enhances system reliability. With ±45V input protection, it's suitable for industrial, medical, and instrumentation applications requiring precise temperature monitoring.

Condition Brand New
Category Evaluation Boards – Sensors
Weight: 2.7g
Dimensions: 28.0mm x 25.5mm x 3.0mm
Operating Temperature: -40°C to +125°C
Conversion Time: 21ms maximum
ADC Resolution: 15-bit
