12-Key Capacitive Touch Sensor Breakout - MPR121

Sold Out
₹983.50 (Incl. of all taxes)
₹806.47
+ ₹177.03 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

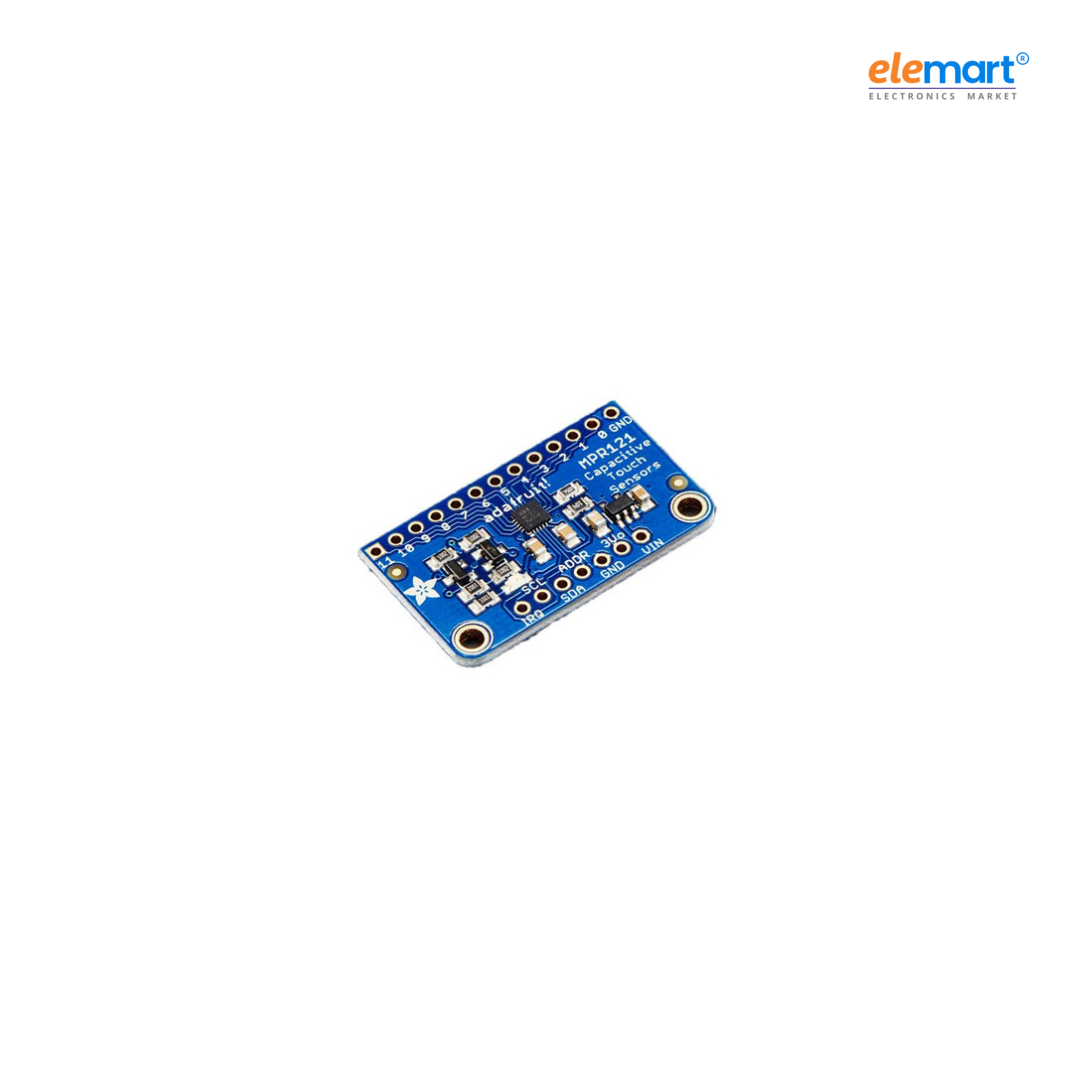

The Adafruit 12-Key Capacitive Touch Sensor Breakout Board (MPR121) is a versatile module designed to add capacitive touch sensing capabilities to your projects. Utilizing the MPR121 chip, it supports up to 12 individual touch pads and communicates via I²C, making it compatible with various microcontrollers. The board features a 3.3V voltage regulator and I²C level shifting, allowing safe operation with both 3.3V and 5V systems. Additionally, it includes an interrupt (IRQ) pin with an onboard LED indicator to signal touch events. This breakout board is ideal for creating touch-sensitive interfaces in applications like user input devices, control panels, and interactive installations.

Condition Brand New
Category Evaluation Boards – Sensors
Interface: I²C (Inter-Integrated Circuit)
Operating Voltage: 3.3V to 5V
Dimensions: 33mm x 19mm x 2mm
Weight: 2.2g
Power Consumption: Low power operation
