SEN-14193 - Air Quality Breakout CCS811 Digital Gas Sensor

Sold Out
₹2,154.06 (Incl. of all taxes)
₹1,766.33
+ ₹387.73 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

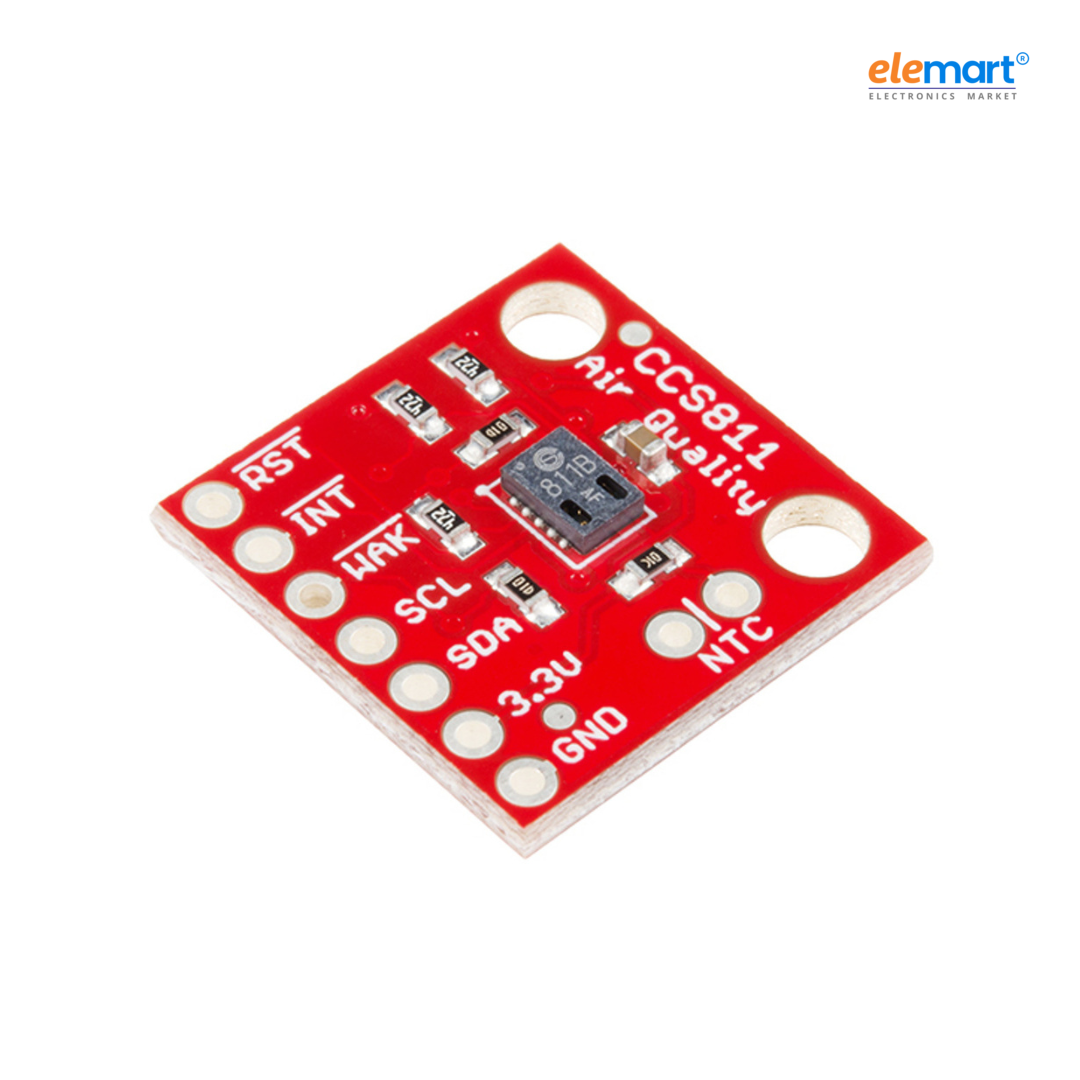

The SEN-14193 Air Quality Breakout from SparkFun is a compact sensor module featuring the CCS811 chip, designed to monitor indoor air quality by detecting Total Volatile Organic Compounds (TVOCs) and equivalent CO₂ (eCO₂) levels. Utilizing a metal oxide (MOX) sensor, it provides measurements ranging from 400 to 8,192 ppm for eCO₂ and 0 to 1,187 ppb for TVOCs. The module operates via I²C communication, supporting both 3.3V and 5V systems. With integrated processing capabilities and low-power modes, it's suitable for applications like air purifiers, smart home systems, and portable environmental monitoring devices.

Condition Brand New
Category Evaluation Boards – Sensors
Supply Voltage: 3.3V
Operating Current: 30mA
Operating Temperature: -40°C to +85°C
Dimensions: 20mm x 16mm x 2.5mm
Interrupt Pin: Active low

No documents available
