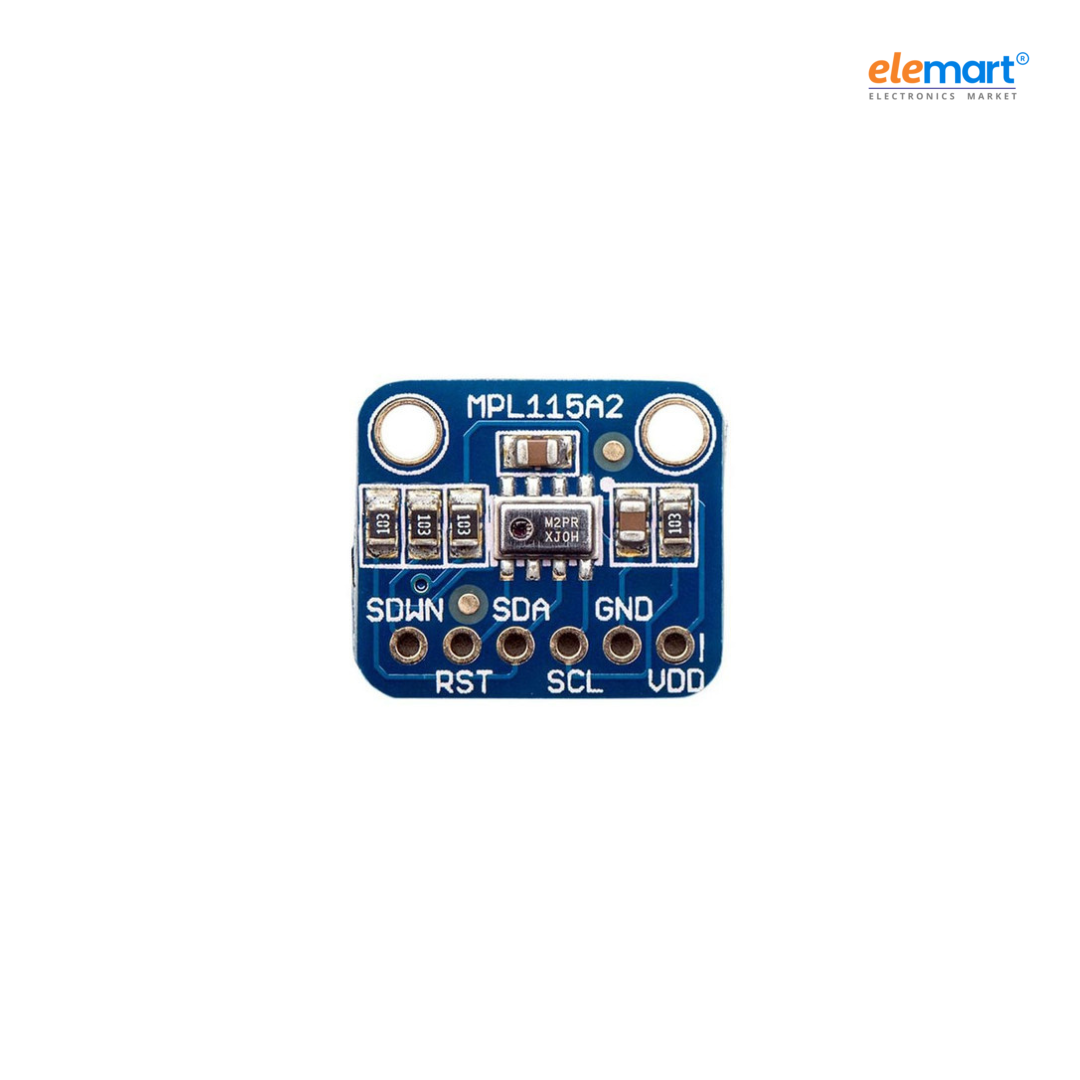

MPL115A2 - I2C Barometric Pressure/Temperature Sensor

Sold Out
₹1,225.40 (Incl. of all taxes)
₹1,004.83
+ ₹220.57 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The MPL115A2 is a compact I²C barometric pressure and temperature sensor ideal for low-power applications. It operates within a voltage range of 2.375V to 5.5V and communicates via I²C at up to 400 kHz, using a 7-bit address of 0x60. The sensor measures absolute pressure from 50 kPa to 115 kPa (approximately 500 m to 10,000 m altitude) with an accuracy of ±1 kPa and a temperature range from −40°C to +105°C. Factory-calibrated with internal ROM coefficients, it provides digitized outputs for both pressure and temperature. The integrated ADC and low power consumption (5 µA active, 1 µA shutdown) make it suitable for portable devices, weather stations, and altimeters. Its small 5 × 3 × 1.2 mm LGA package is RoHS-compliant and surface-mountable.

Condition Brand New
Category Evaluation Boards – Sensors
Vin: 2.4 to 5.5 VDC
PCB weight: 0.61g
Logic: 3 to 5V compliant
Pressure sensing range: 500-1150 hPa (up to 10Km altitude)
Operating Voltage: 2.375V to 5.5V
