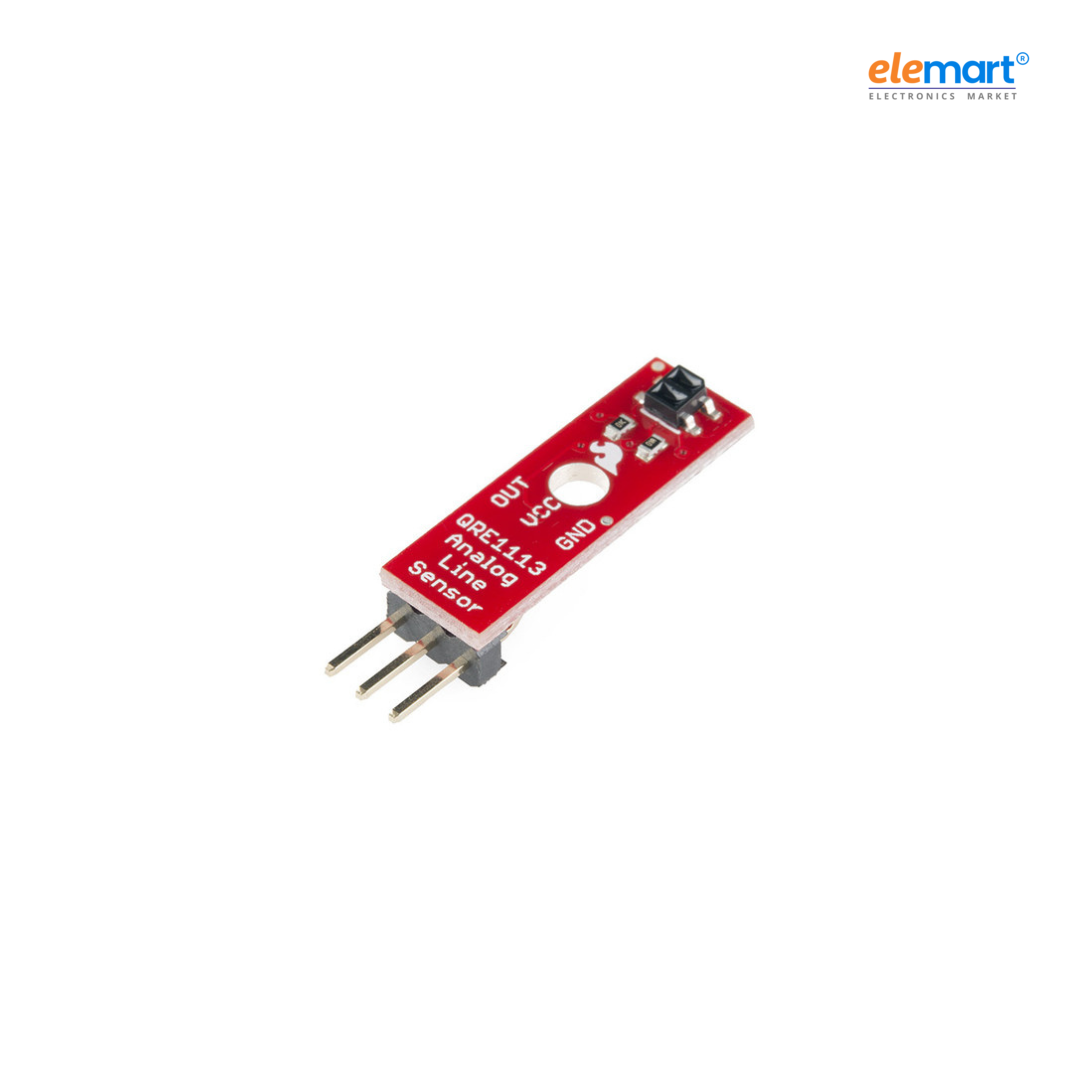

RedBot Line Follower Sensor Board SparkFun

Sold Out
₹356.92 (Incl. of all taxes)
₹292.67
+ ₹64.25 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The SparkFun RedBot Line Follower Sensor Board (SEN-11769) is an add-on module designed to enable robots to detect lines or nearby objects. Utilizing an infrared LED and phototransistor (QRE1113GR), it measures the amount of reflected infrared light to identify transitions from light to dark surfaces or the presence of objects directly in front of it. Operating at 5V DC with a supply current of 25mA, the sensor has an optimal sensing distance of approximately 3mm. It connects to the RedBot Mainboard via a 3-pin header and includes a mounting hole for easy attachment to the robot chassis. The sensor is compatible with the RedBot Arduino library, facilitating straightforward integration into robotics projects.

Condition Brand New
Category Evaluation Boards – Sensors
Operating Voltage: 5V DC.
Supply Current: 25mA
Dimensions: 8.22mm x 30.14mm.
Optimal Sensing Distance: Around 3mm (0.125 inches).
Response Time: Fast
