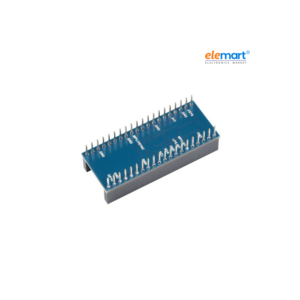

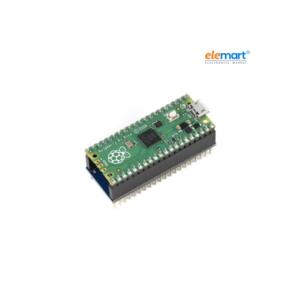

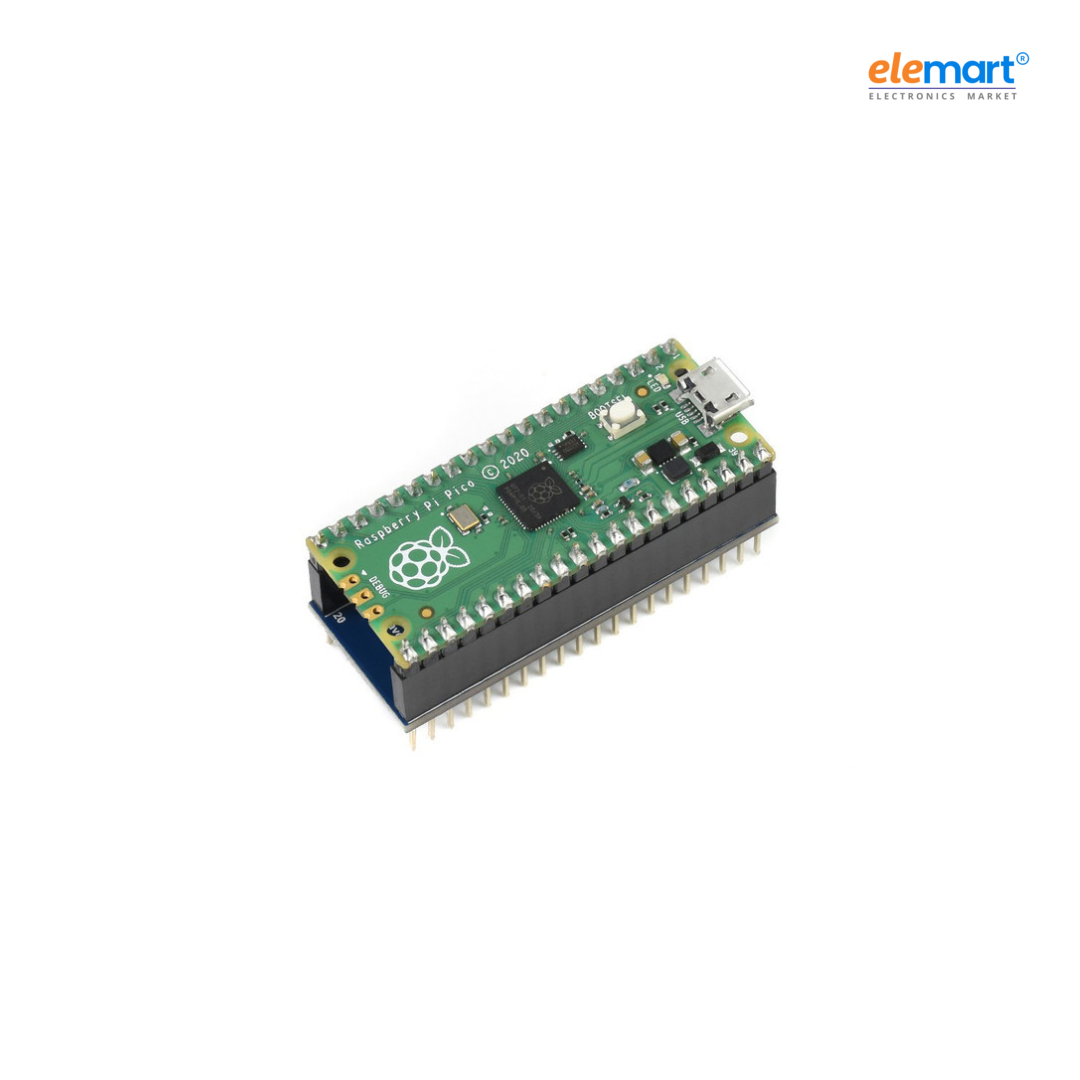

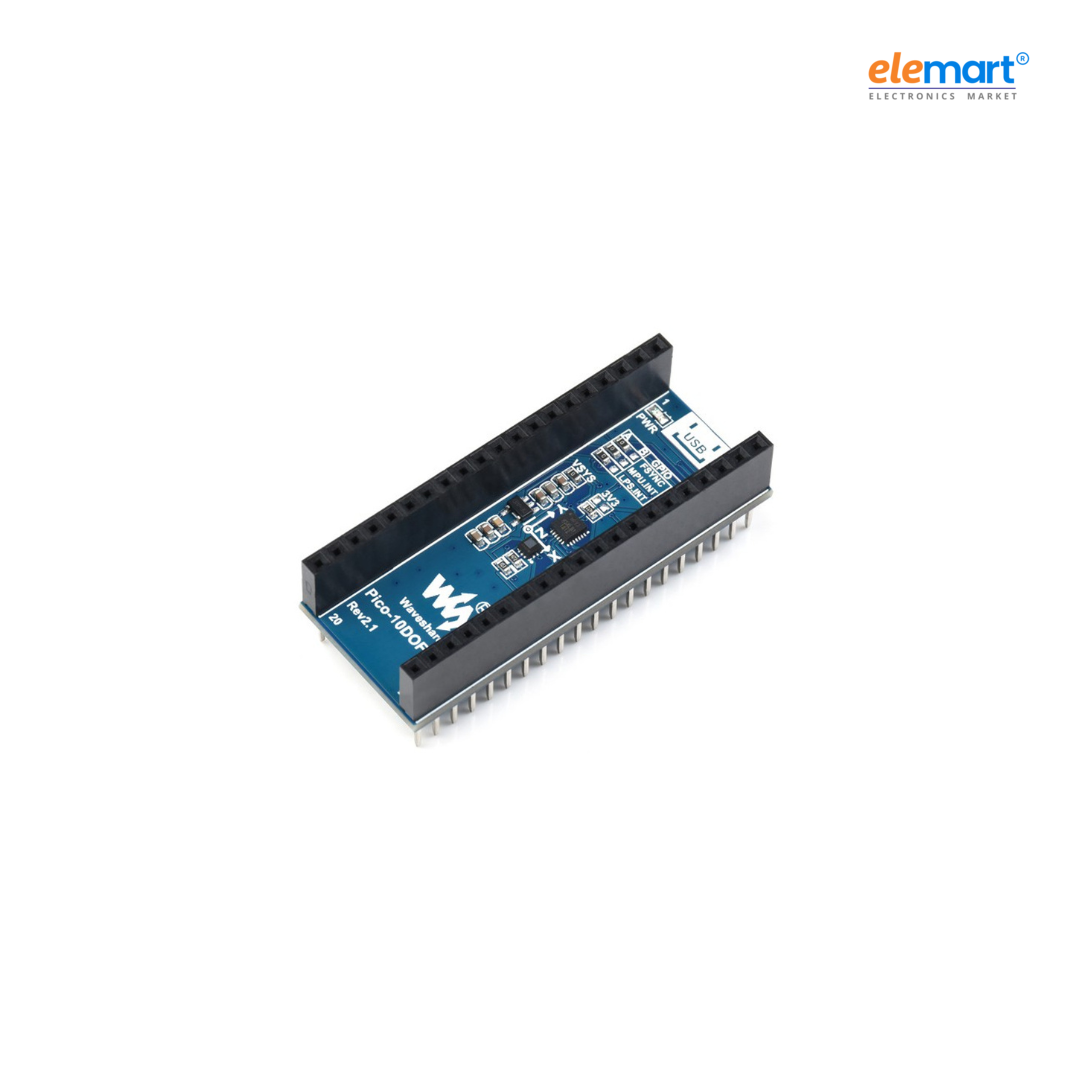

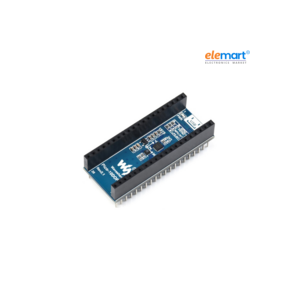

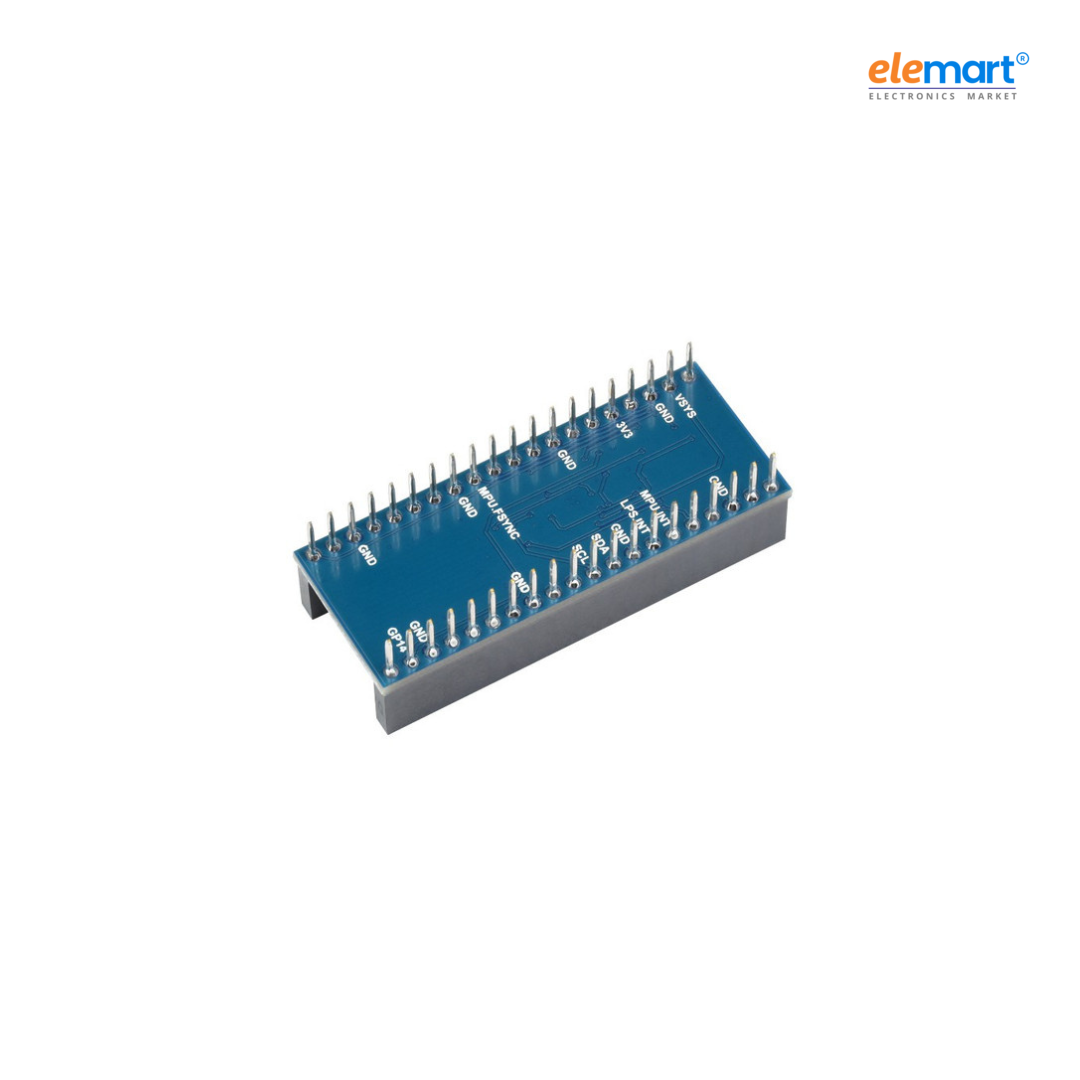

10-DOF IMU Sensor Module for Raspberry Pi Pico, onboard MPU9250 and LPS22HB chip

Sold Out
₹1,833.10 (Incl. of all taxes)
₹1,503.14
+ ₹329.96 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The 10‑DOF IMU Sensor Module for Raspberry Pi Pico integrates a 9‑axis motion sensor and a barometric pressure sensor in one stackable breakout. It includes the MPU‑9250 (3‑axis accelerometer, gyroscope, magnetometer) and the LPS22HB barometer, communicating via I²C at 5 V. The accelerometer offers 16‑bit resolution with ±2/4/8/16 g ranges; the gyroscope supports ±250/500/1,000/2,000°/s; while the magnetometer provides ±4,900 µT full‑scale. The LPS22HB measures 260–1260 hPa with ±0.025 hPa accuracy. Onboard regulation (3.3 V) and level translation ensure Pico compatibility. Ideal for robotics, drone navigation, gesture detection, environmental sensing, and orientation tracking in compact embedded projects.

Condition Brand New
Category Evaluation Boards – Sensors
IMU: MPU9250 or ICM20948
Pressure Sensor: LPS22HB (260–1260 hPa)
Interfaces: I²C
Accel Range: ±2g to ±16g
Voltage: 5V input
