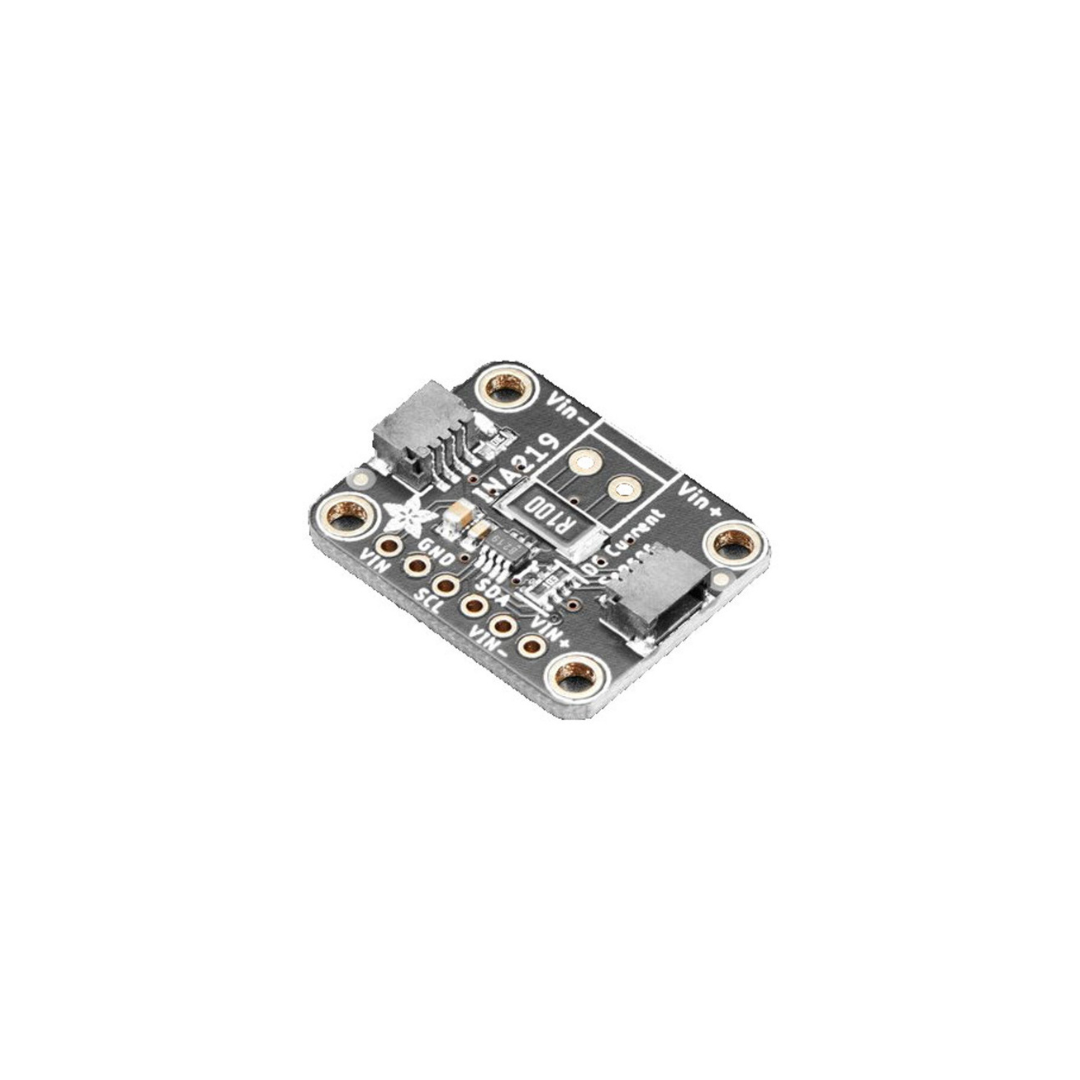

Adafruit INA219 26V 3.2A DC Current Sensor Breakout - STEMMA QT
Brand: Adafruit Industries
Features
₹1,225.4 (Incl. of all taxes)
₹1,225.4
+ ₹1,225.4 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The Adafruit INA219 High Side DC Current Sensor Breakout Board enables precise power monitoring by measuring both the high-side voltage and DC current draw over I²C with ±1% precision. Utilizing the INA219B chip, it supports voltage measurements up to 26V and current measurements up to ±3.2A, with a 12-bit ADC providing a resolution of 0.8mA at full scale. The board features a 0.1Ω sense resistor, allowing for current measurements with minimal voltage drop. Equipped with a STEMMA QT / Qwiic connector, it facilitates easy integration into projects without soldering.
Specifications
| Resolution: | 0.8mA at ±3.2A |
|---|---|
| Accuracy: | ±1% |
| Interface: | I²C |
| Power Supply: | 3.3V to 5V DC |
| Sense Resistor: | 0.1Ω |
