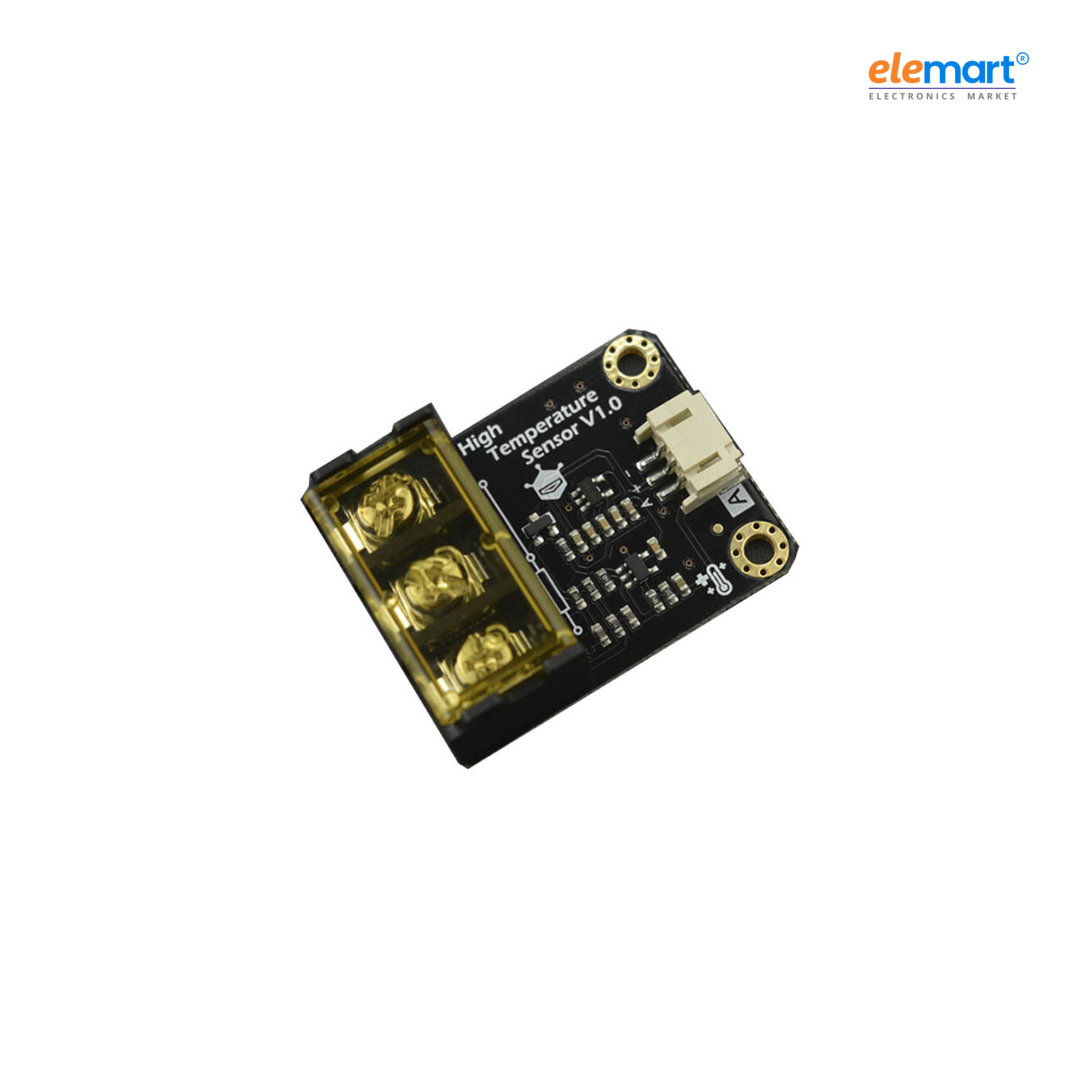

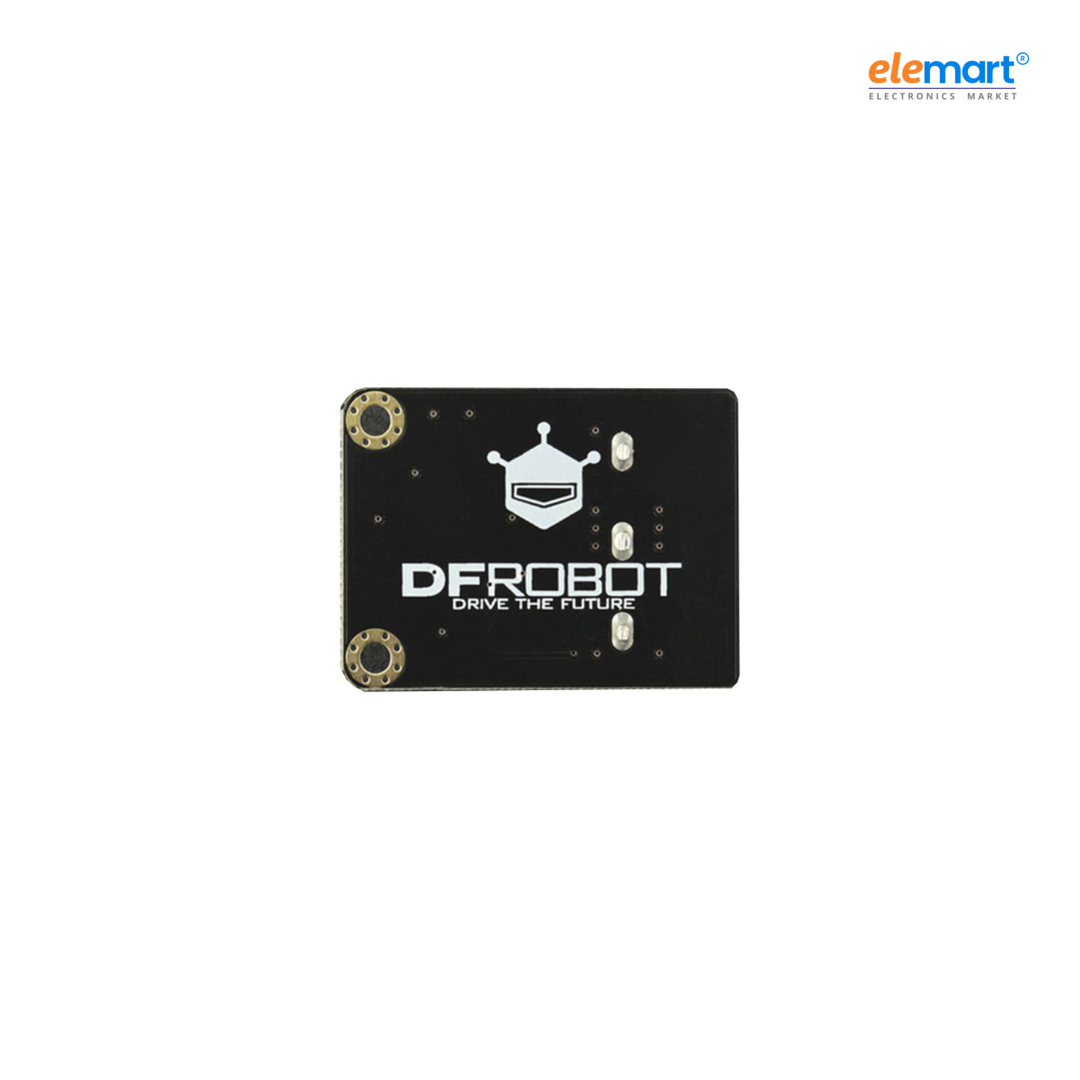

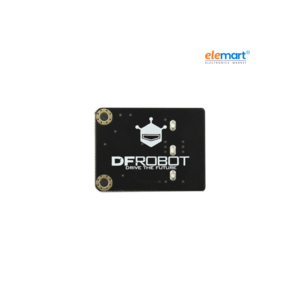

Gravity: Analog High Temperature Sensor 30~350C

Sold Out
₹2,426.00 ₹3,999.00 39% Off (Incl. of all taxes)
₹1,989.32
+ ₹436.68 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The DFRobot Gravity Analog High Temperature Sensor (SEN0198) is designed for precise temperature measurements ranging from 30°C to 350°C. It utilizes a PT100 resistance temperature detector (RTD) probe, known for its accuracy and stability in industrial applications. The sensor module operates on a voltage range of 3.3V to 5.5V and provides an analog output between 0.2V and 2.8V, corresponding to the measured temperature. With a relative error of ±2% full scale, it ensures reliable readings. The module features a PH2.0-3P Gravity interface for easy integration with microcontrollers like Arduino and STM32. Included in the package are the sensor module, a 2-meter PT100 probe, and an analog sensor cable, facilitating straightforward setup for various high-temperature monitoring applications.

Condition Brand New
Category Evaluation Boards – Sensors
Measurement Range: 30°C to 350°C
Accuracy: ±2% full scale
Operating Voltage: 3.3V to 5.5V
Interface: Gravity 3-pin PH2.0
Module Dimensions: 42 x 32 x 18 mm
