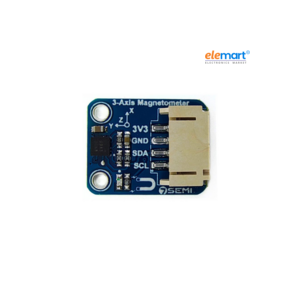

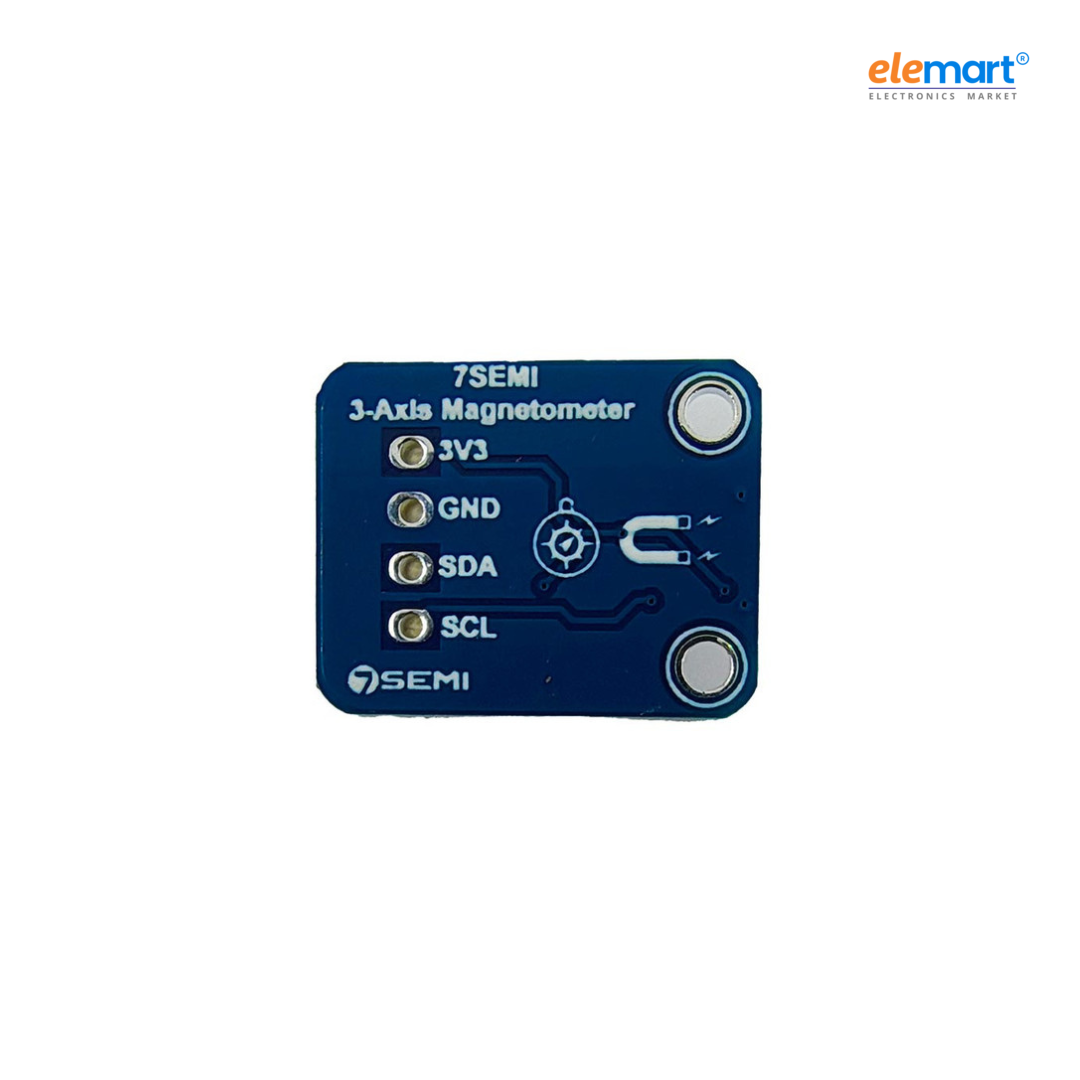

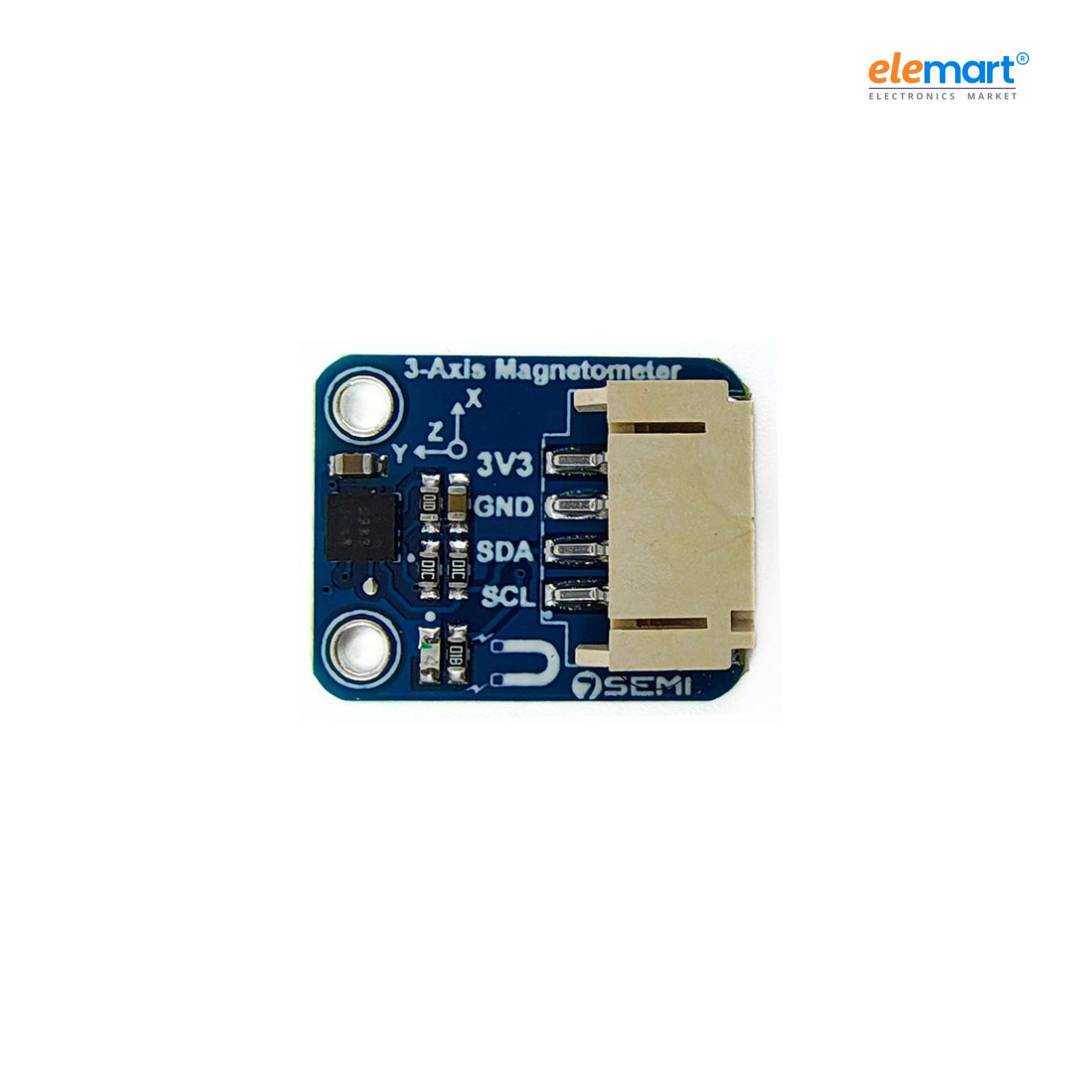

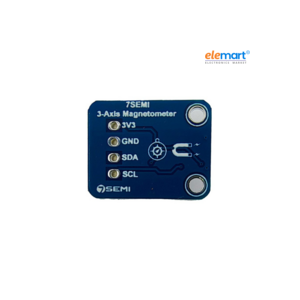

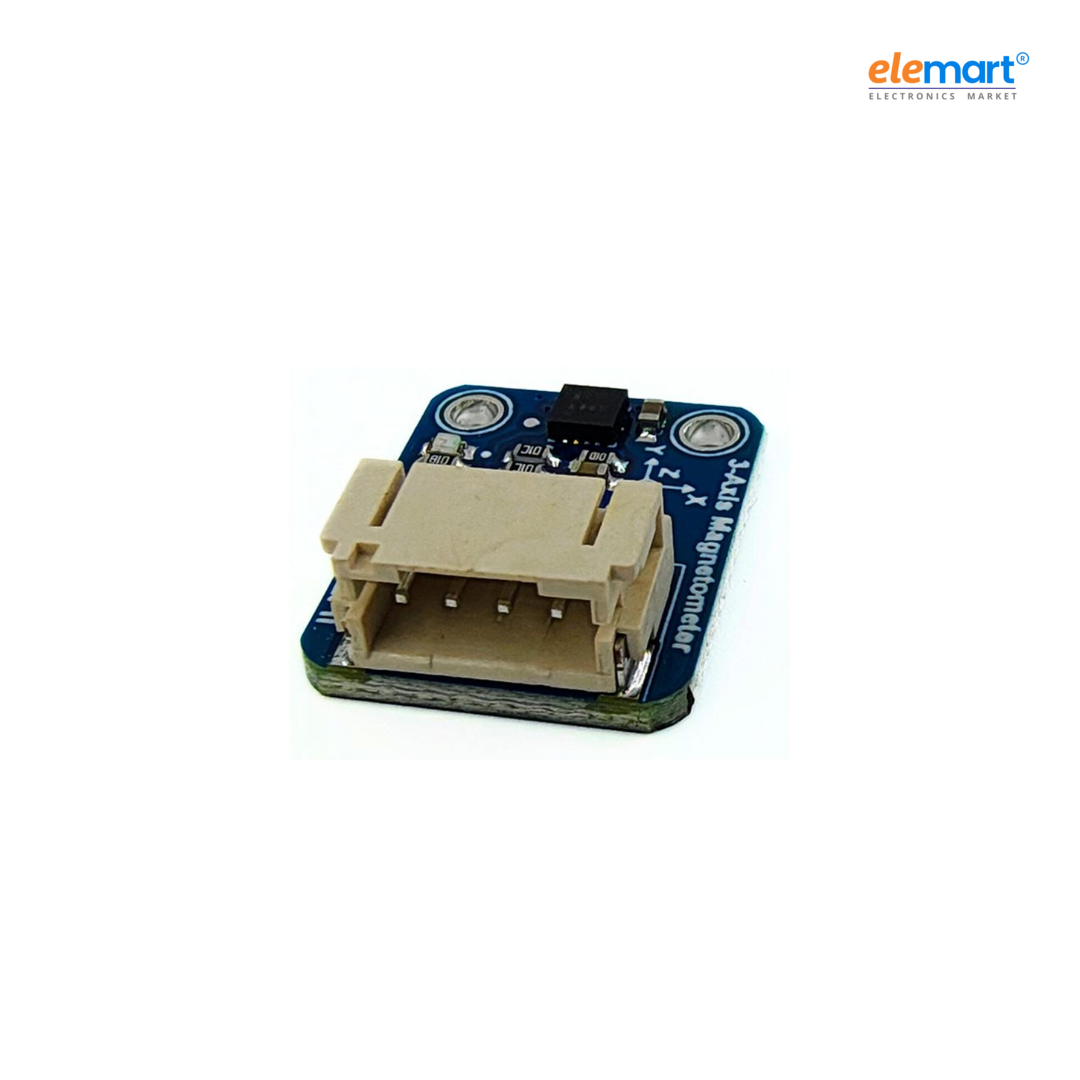

7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor

Brand: 7semi
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
Sold Out
₹1,570.50 ₹3,999.00 61% Off (Incl. of all taxes)
₹1,287.81
+ ₹282.69 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The 7Semi MMC5983MA Mini Magnetometer Breakout is a compact and highly sensitive 3-axis magnetic sensor designed for precision applications. Utilizing MEMSIC's MMC5983MA technology, it offers a resolution of 0.4mG and heading accuracy of ±0.5°, making it ideal for electronic compass and navigation systems. The sensor features a ±8G full-scale range and operates with an 18-bit resolution, providing detailed magnetic field measurements. Communication is facilitated via I²C interface with a default address of 0x30, supporting data rates up to 1000Hz. Its low-power design, consuming only 1µA in power-down mode, ensures energy efficiency. The breakout board includes built-in degaussing circuitry, mitigating residual magnetization effects. Its compact form factor with a 4-pin 2mm pitch JST connector simplifies integration into various projects. This sensor is suitable for applications in robotics, drones, and other systems requiring precise magnetic field sensing.

Condition Brand New
Category Evaluation Boards – Sensors
Voltage Supply: 3.3V
Interface: I2C
Output Data Rate: Up to 1000Hz
I2C Address: 0x30
Resolution: 0.4 mG (0.0004 Gauss)
