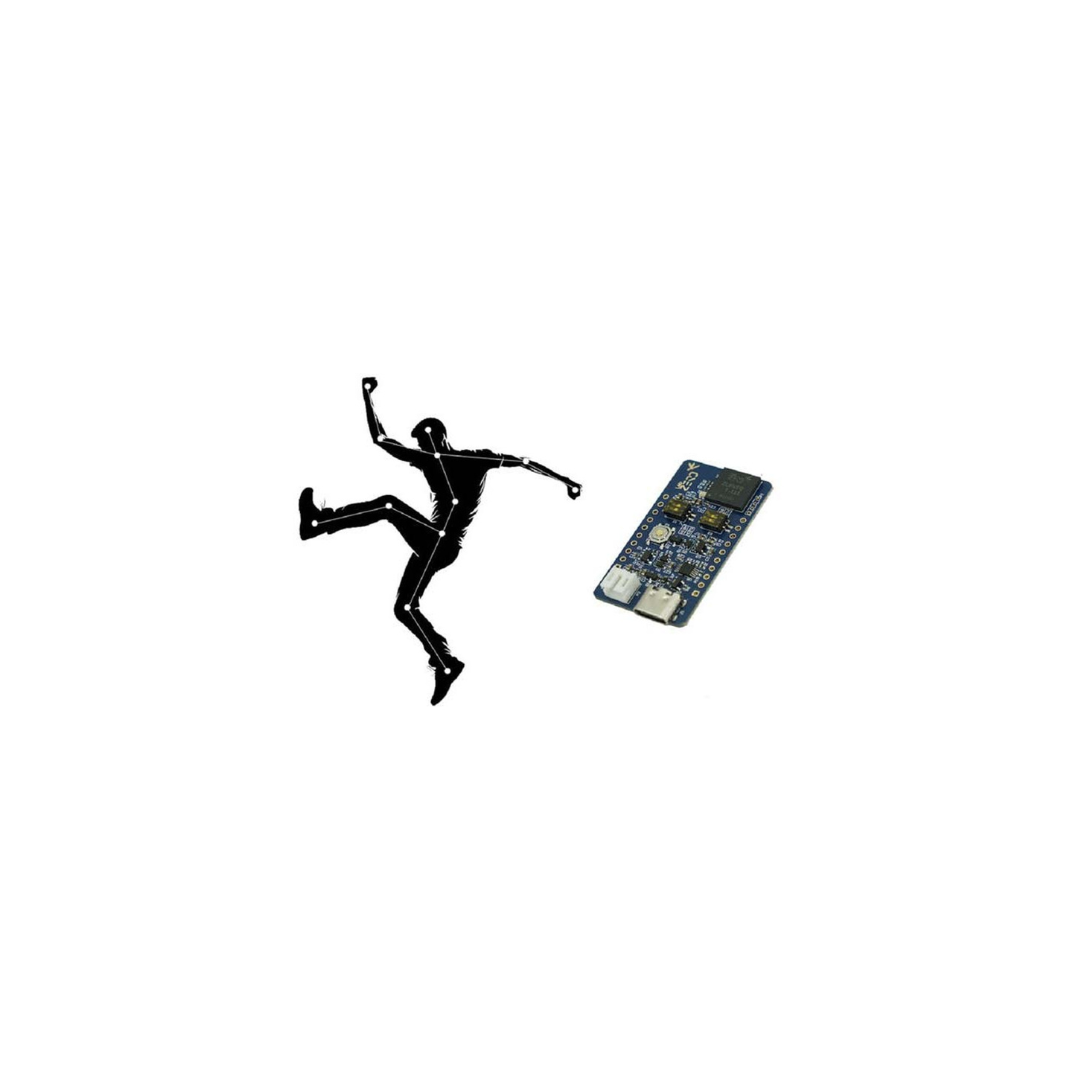

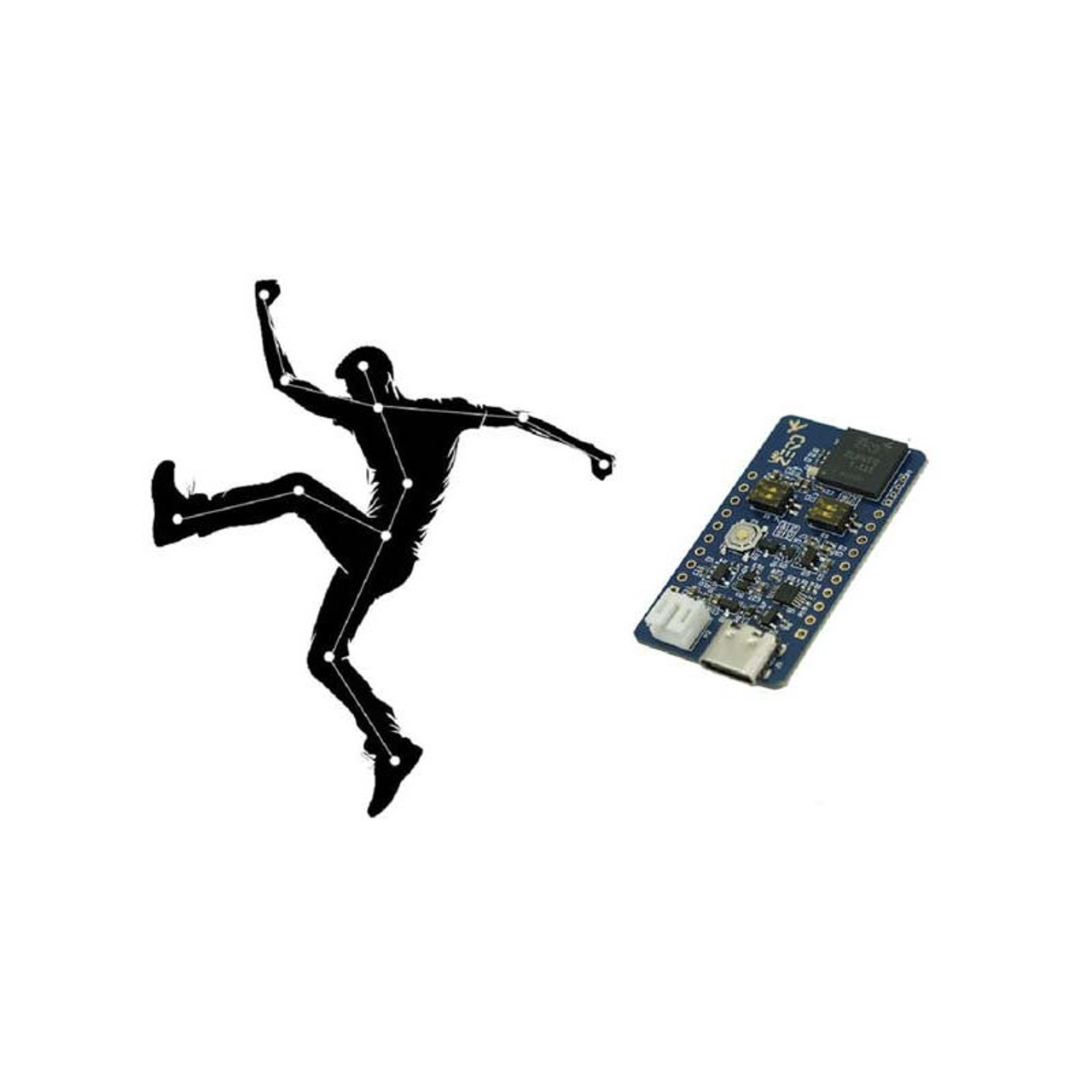

ZL9NSQ Wireless 3D Attitude Sensor Module for Posture Detection
Brand: Dfrobot
Features
₹7,592.04
+ ₹7,592.04 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item
The ZL9NSQ Wireless 3D Attitude Sensor Module is a high-precision motion sensor designed for applications requiring accurate posture detection and orientation tracking. It integrates a 9-axis IMU comprising a 3-axis accelerometer, gyroscope, and magnetometer, providing comprehensive spatial data. Powered by a 32-bit ARM Cortex-M4F processor, the module supports Bluetooth 5.0, UART, and SPI communication protocols, ensuring versatile connectivity options. With a static pitch/cross accuracy of 0.05° and a maximum data output rate of 250Hz, it delivers precise quaternion, Euler angle, acceleration, and angular velocity data. This makes it ideal for applications in posture monitoring, gaming, personal health and fitness, and inertial navigation systems.
Specifications
| Working Voltage: | J1-USB Type-C (5V), P2-PH2.0 (3.3V), P4-VCC (5V) |
|---|---|
| Communication Method: | RF (Bluetooth), UART, SPI |
| Angle Resolution: | ＜0.01° |
| Angle Repeatability: | ＜0.1° |
| Sensor Raw Data Output Rate: | Max 250Hz |
