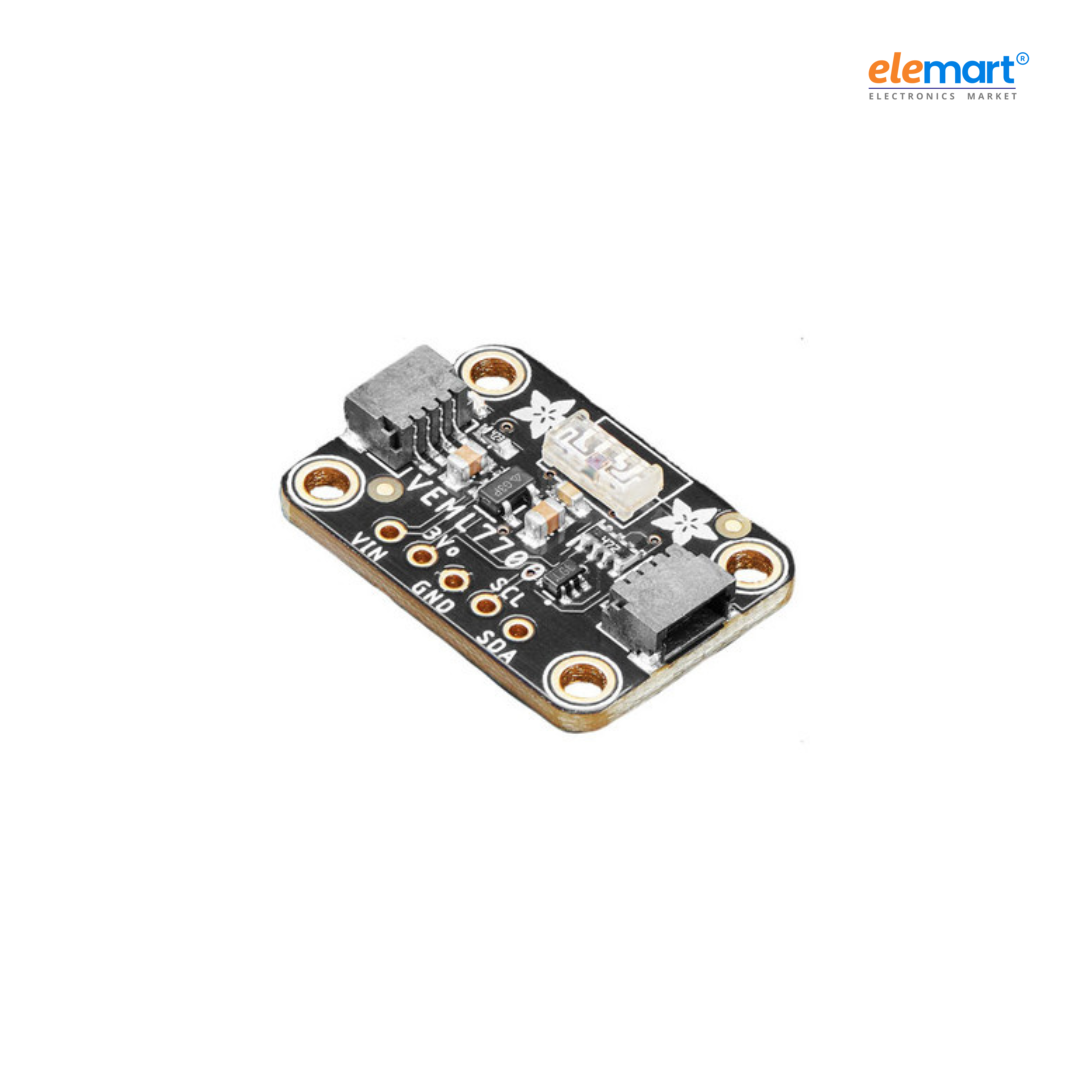

VEML7700 Lux Sensor - I2C Light Sensor Qwiic Compatible

Sold Out
₹1,617.70 ₹2,556.00 37% Off (Incl. of all taxes)
₹1,326.51
+ ₹291.19 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The VEML7700 is a high-precision ambient light sensor that offers direct lux measurements via I²C communication. It features a 16-bit resolution, enabling detection of light levels from 0 to approximately 120,000 lux, with a sensitivity as fine as 0.0036 lux per count. Designed with Filtron™ technology, it closely mimics human eye response, ensuring accurate ambient light sensing. The sensor operates efficiently with a supply voltage range of 2.5V to 3.6V and boasts low power consumption—drawing just 45µA during active operation and 0.5µA in shutdown mode. Its compact size and I²C interface make it ideal for integration into various applications, including smart lighting systems, display brightness control, and environmental monitoring devices.

Condition Brand New
Category Evaluation Boards – Sensors
Weight: 1.0g
Dimensions: 16.6mm x 16.5mm x 4.0mm
Resolution: 0.0036 lux/count
Power Supply: 2.5V to 3.6V
Measurement Range: 0 to 120,000 lux
Supply Voltage: 2.5V to 3.6V
Operating Temp.: –25°C to +85°C
Dimensions: 6.8 x 2.35 x 3.0 mm
Shutdown Mode: Software-controlled
Flicker Rejection: 100Hz and 120Hz
