ICM-20948 9DoF IMU Breakout Qwiic I2C SparkFun
Brand: Sparkfun
Features
₹2,712.74 (Incl. of all taxes)
₹3,999
32% Off
₹2,712.74
+ ₹2,712.74 GSTStock: Outofstock
This product is currently out of stock.
For B2B orders, contact us on
About this item

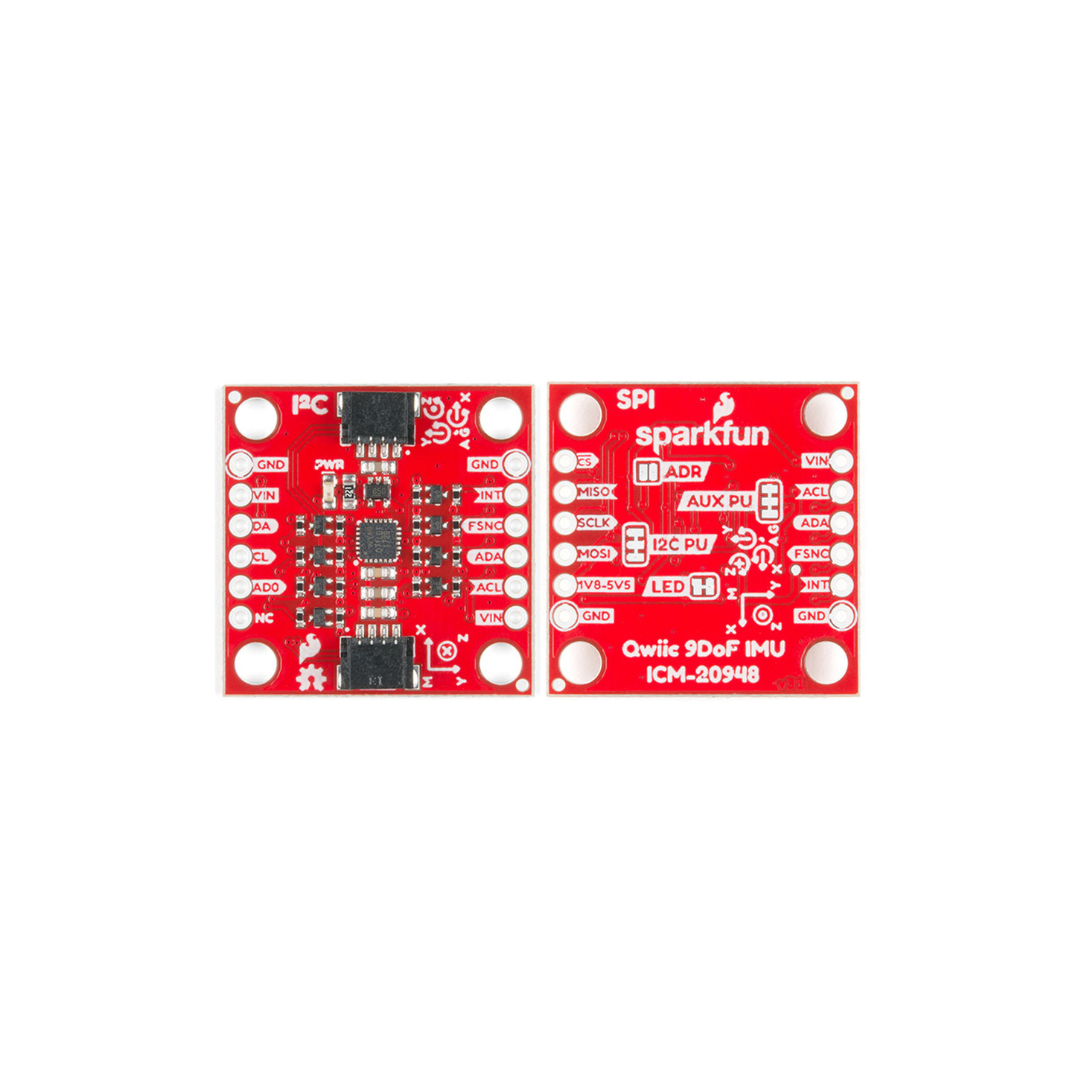

The SparkFun SEN-15335 ICM-20948 9DoF IMU Breakout is a compact motion sensor module that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer, offering a full 9 degrees of freedom. It communicates via I²C with selectable addresses (0x68 or 0x69) and features dual Qwiic connectors for easy daisy-chaining. The onboard Digital Motion Processor (DMP) offloads sensor fusion tasks, enhancing performance. Operating at 1.95V to 3.6V, it supports applications in robotics, wearables, and IoT devices. The module is compatible with Arduino and Python libraries for seamless integration.
Specifications
| Communication: | I²C (up to 400 kHz) and SPI (up to 7 MHz) |
|---|---|
| Power Supply: | 1.95V to 3.6V |
| Digital Motion Processor: | Yes |
| Temperature Sensor: | Digital output |
| Qwiic Connectors: | 2x |
