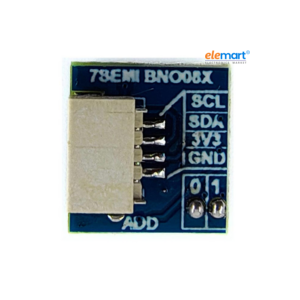

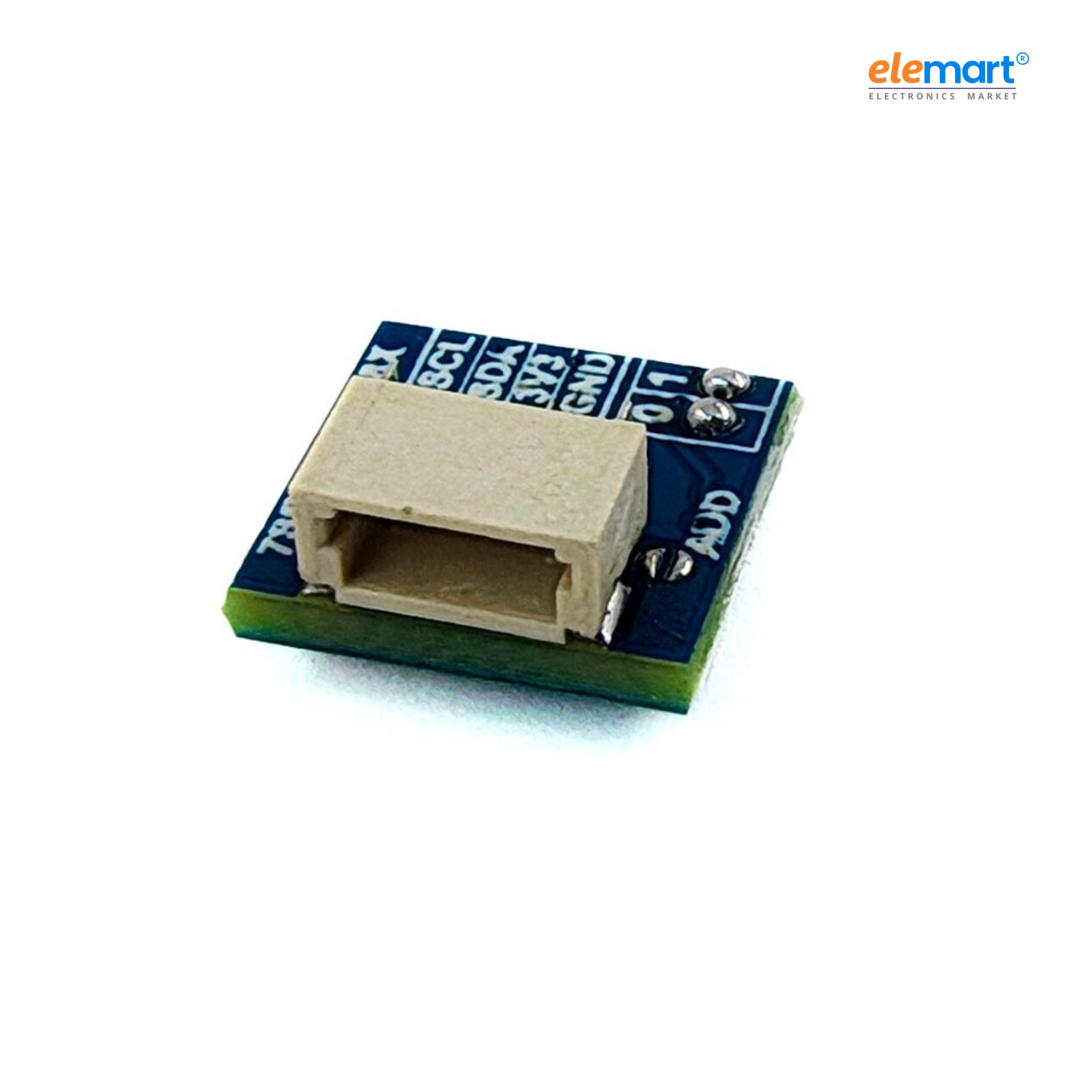

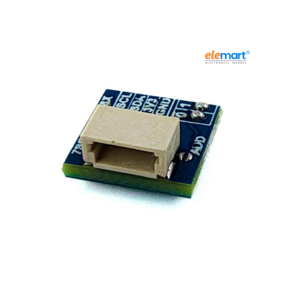

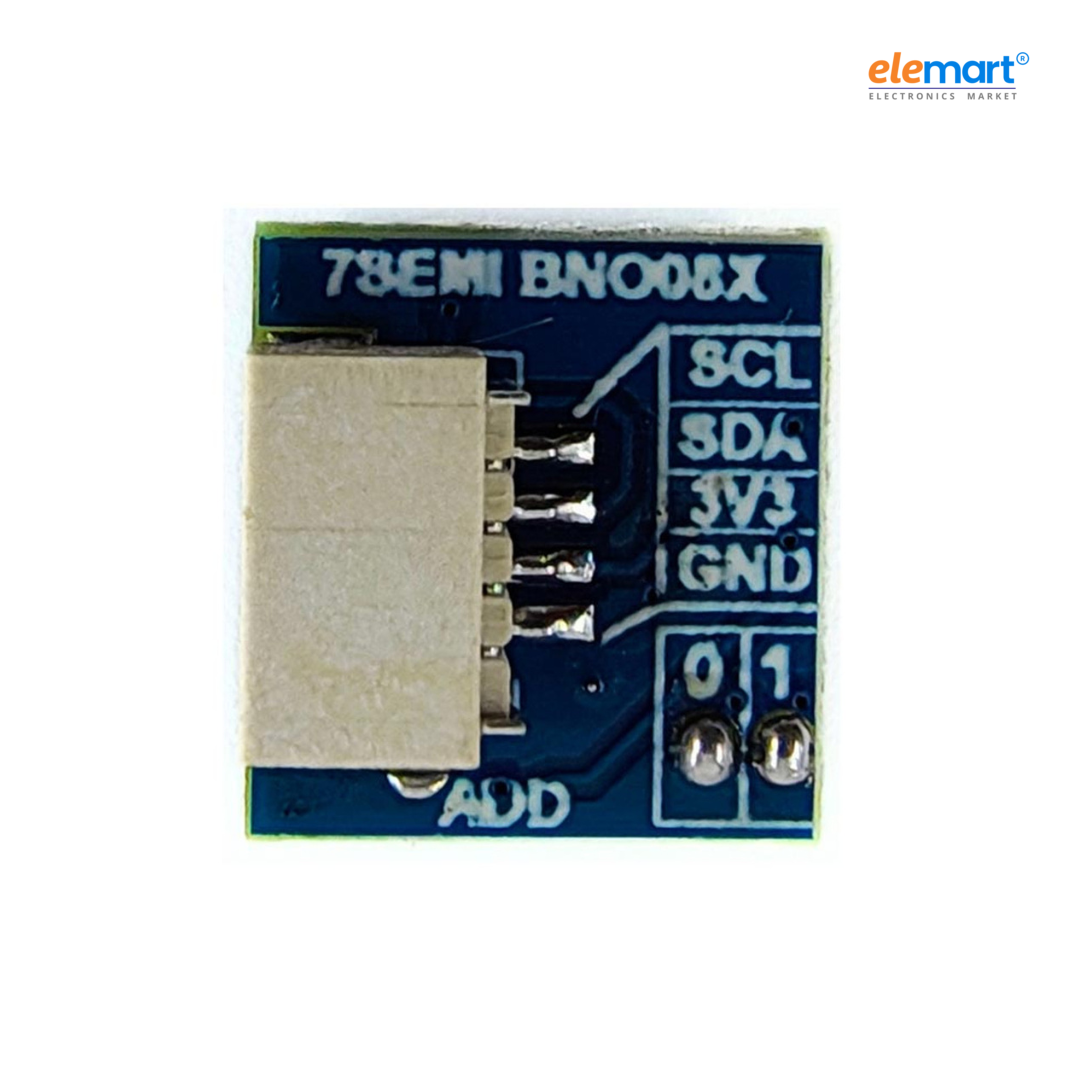

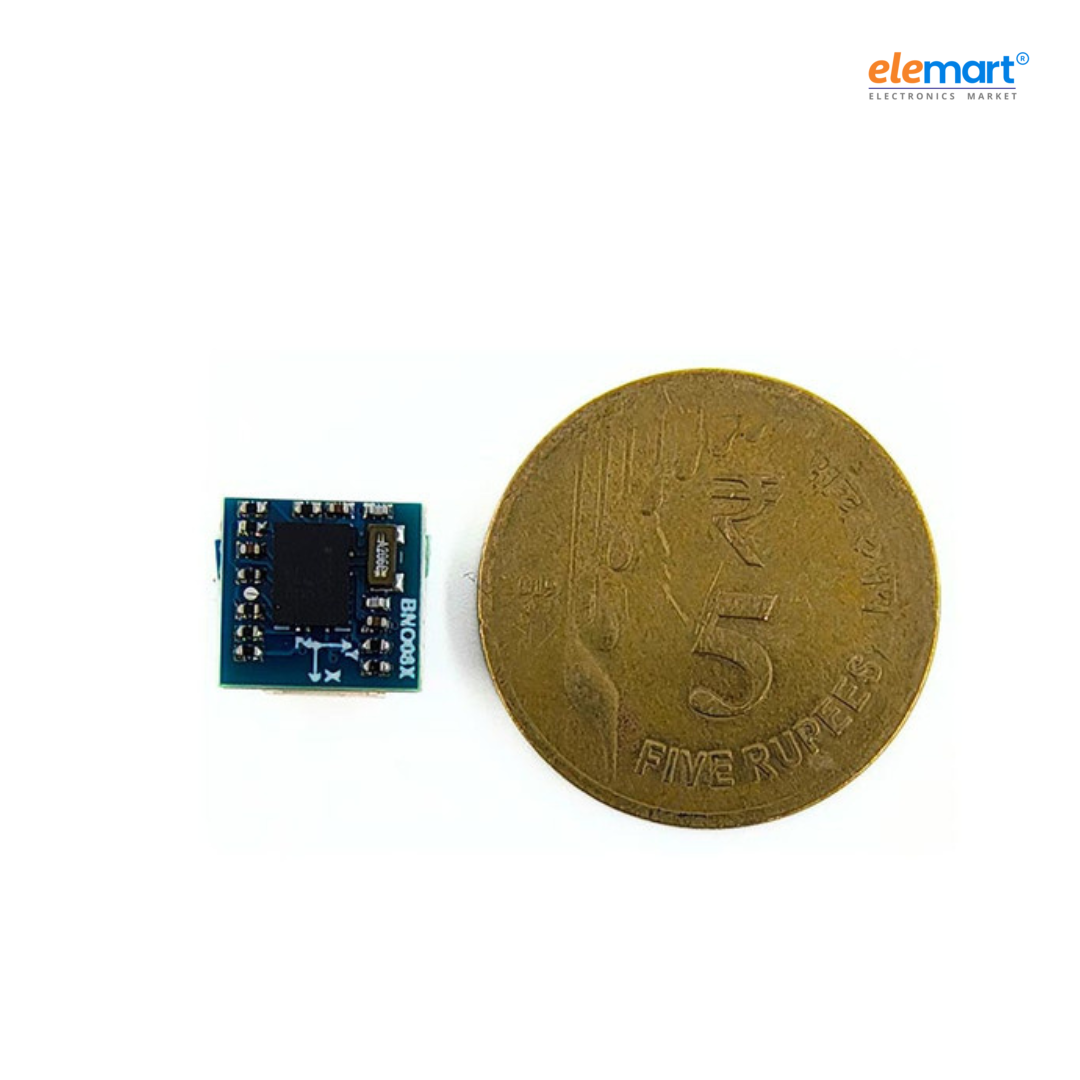

7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT

Brand: 7semi
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
7Semi BNO086 IMU mini Breakout for Robotics, AR, VR, and IoT
Sold Out
₹3,187.10 ₹4,999.00 36% Off (Incl. of all taxes)
₹2,613.42
+ ₹573.68 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

The 7Semi BNO086 IMU Mini Breakout is a compact, high-precision 9-axis motion sensor tailored for robotics, AR/VR, and IoT projects. Powered by the CEVA BNO086 chip, it integrates a 3-axis accelerometer, gyroscope, and magnetometer, with an onboard 32‑bit ARM Cortex‑M0+ processor that performs real-time sensor fusion. It delivers accurate orientation, acceleration, and rotation data via I²C (3.3 V supply), and also supports SPI and UART on alternative breakouts. Featuring dynamic calibration, activity recognition (e.g., walking, biking), and intelligent power management with wake-on-motion, it offers reliable performance in space-constrained, low-power applications.

Condition Brand New
Category Evaluation Boards – Sensors
Supply Voltage: 3.3 V
Interface: I²C
Processor: ARM Cortex‑M0+
Sensor Fusion: Built-in with CEVA MotionEngine™
Application: Robotics, AR/VR, IoT
