MPRLS Ported Pressure Sensor Breakout:0-25PSI

Sold Out
₹4,668.00 ₹8,999.00 48% Off (Incl. of all taxes)
₹3,827.76
+ ₹840.24 GST
Sold Out
Currently Out of Stock

This item is currently unavailable. Subscribe below to receive an alert when it's back in stock.

No spam. We will only email you when stock is restocked.
For B2B orders, contact us on

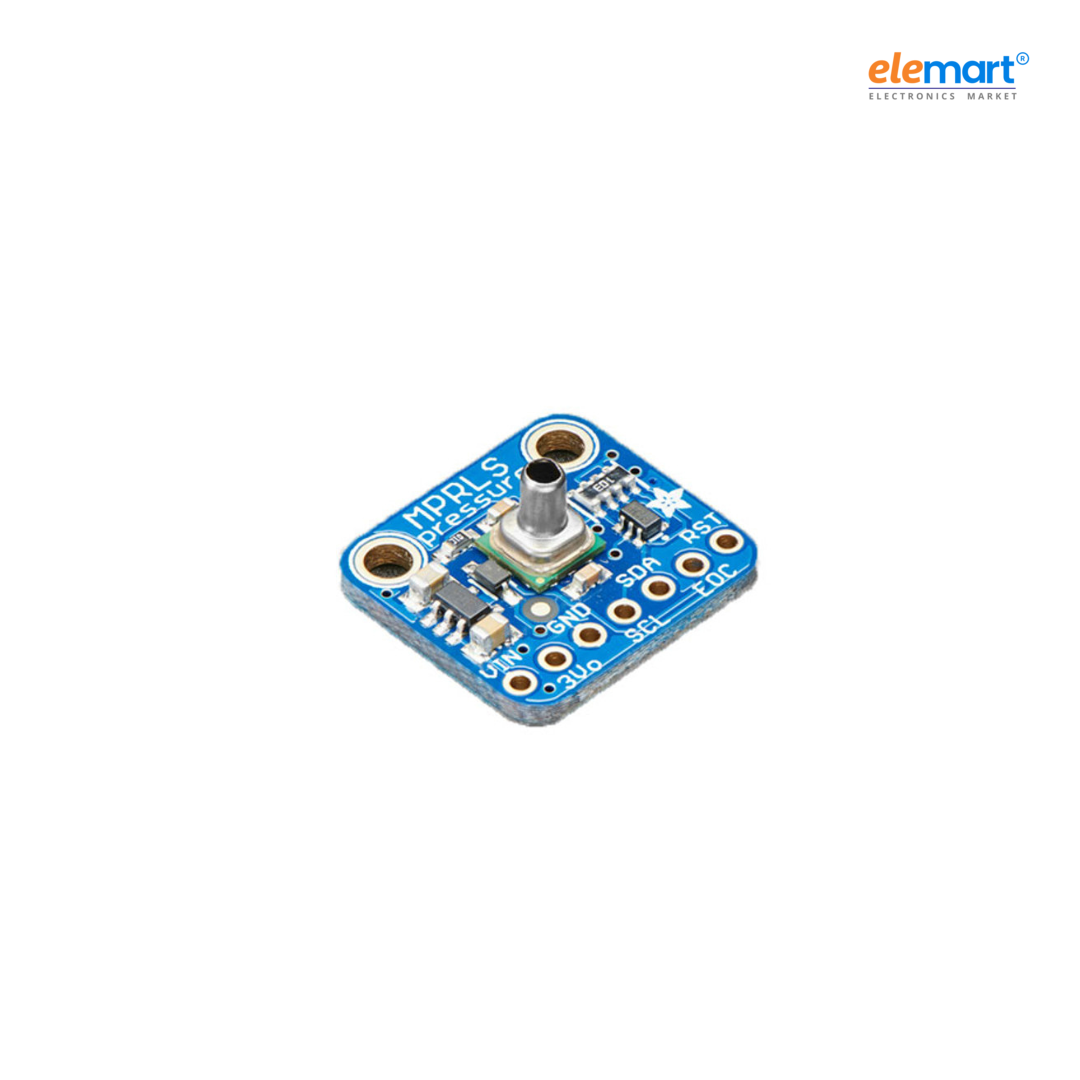

The Adafruit MPRLS Ported Pressure Sensor Breakout (product ID: 3965) is a compact and precise sensor designed for measuring absolute air pressure in confined spaces. It offers a pressure range of 0 to 25 PSI, making it ideal for applications such as "Sip & Puff" interfaces and monitoring pressure within vacuum chambers. Unlike many ported sensors, it features a metal port (3.7mm length, 2.5mm diameter) for easy tubing attachment. The sensor communicates via I²C (address 0x18) and operates on a 3.3V power supply. It integrates a pre-calibrated, compensated 24-bit ADC and includes libraries for Arduino and CircuitPython/Python. The breakout board is equipped with 3.3V power regulation and level shifting, ensuring compatibility with various microcontrollers and microcomputers.

Condition Brand New
Category Evaluation Boards – Sensors
Measurement Range: 0 to 25 PSI (absolute pressure)
Interface: I²C (address 0x18)
Power Supply: 3.3V regulated
Sensor Type: Honeywell MPRLS series with 24-bit ADC
Port Dimensions: Stainless steel, 3.7mm length, 2.5mm diameter
