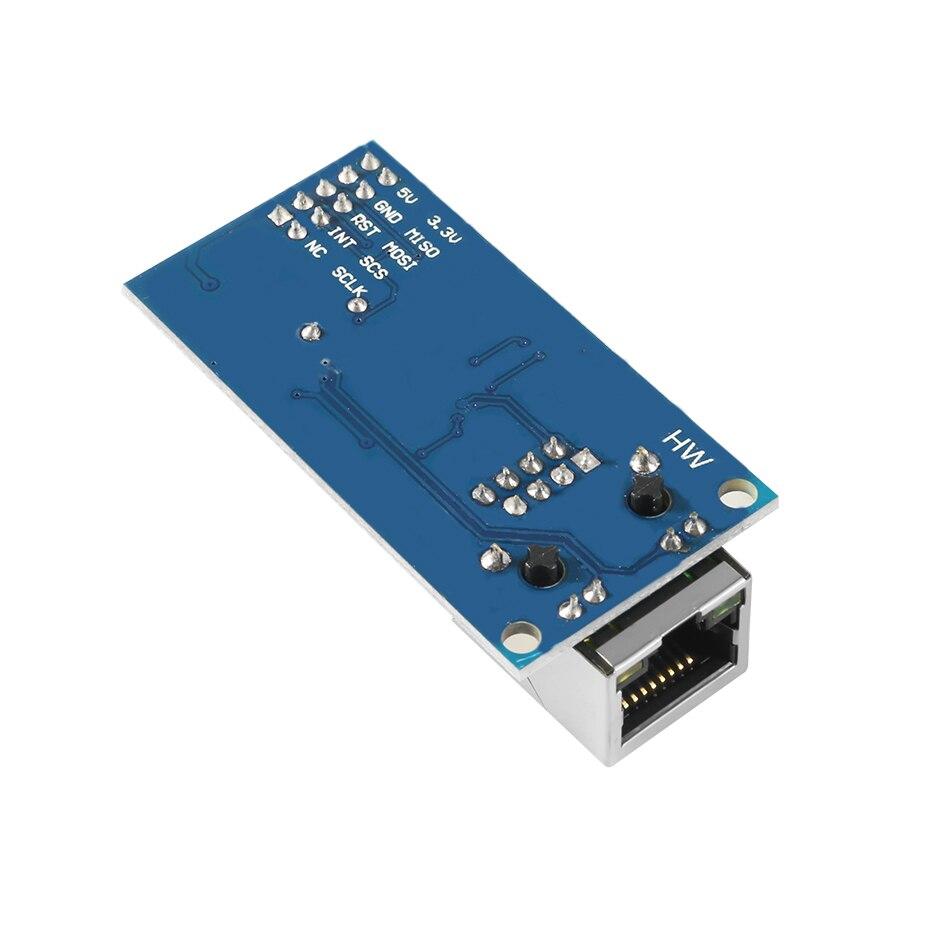

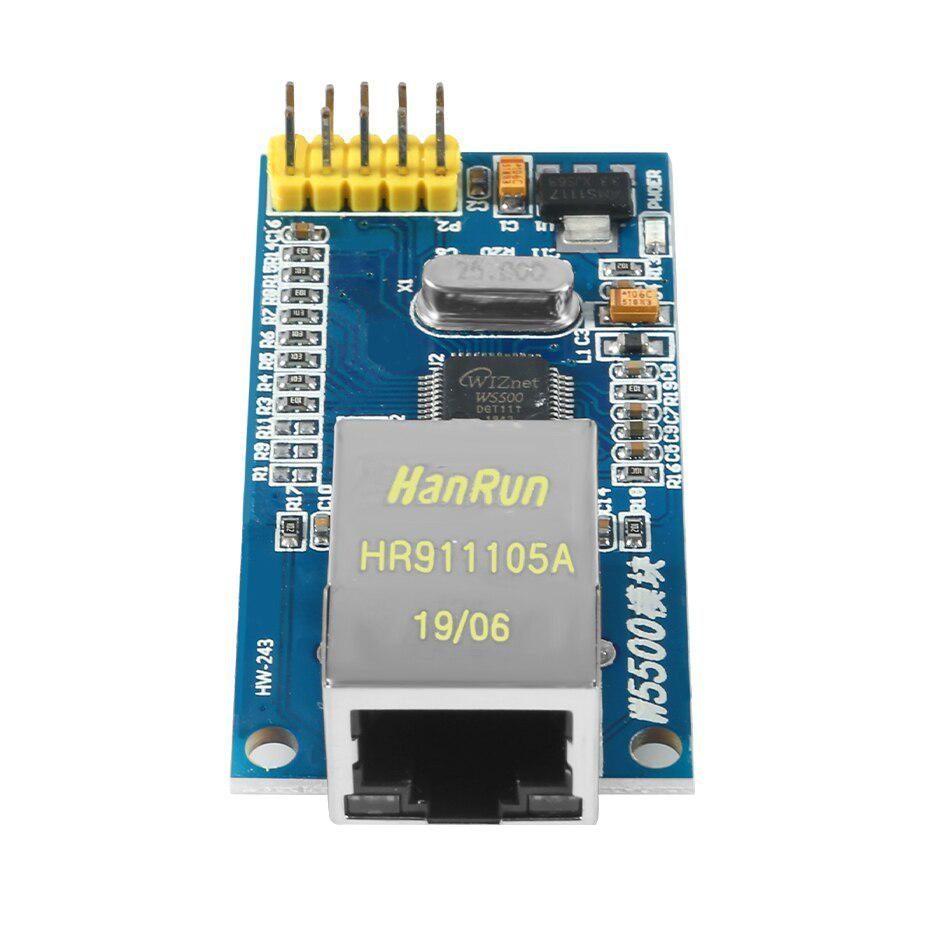

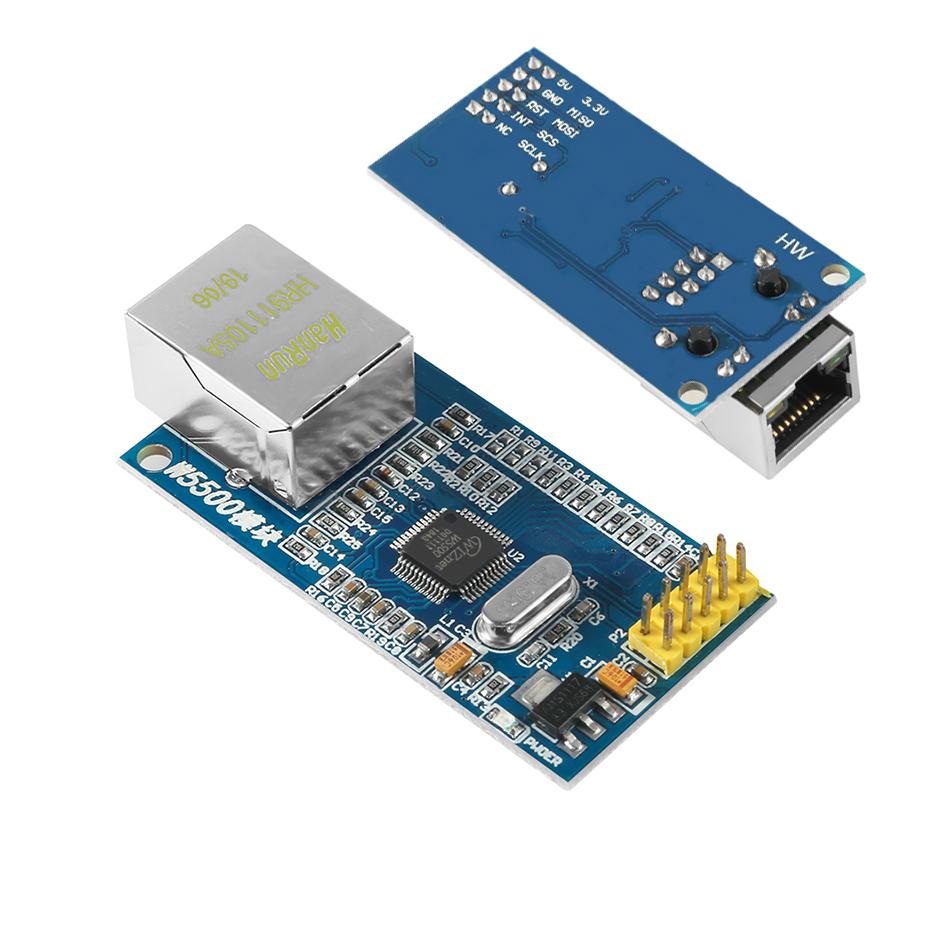

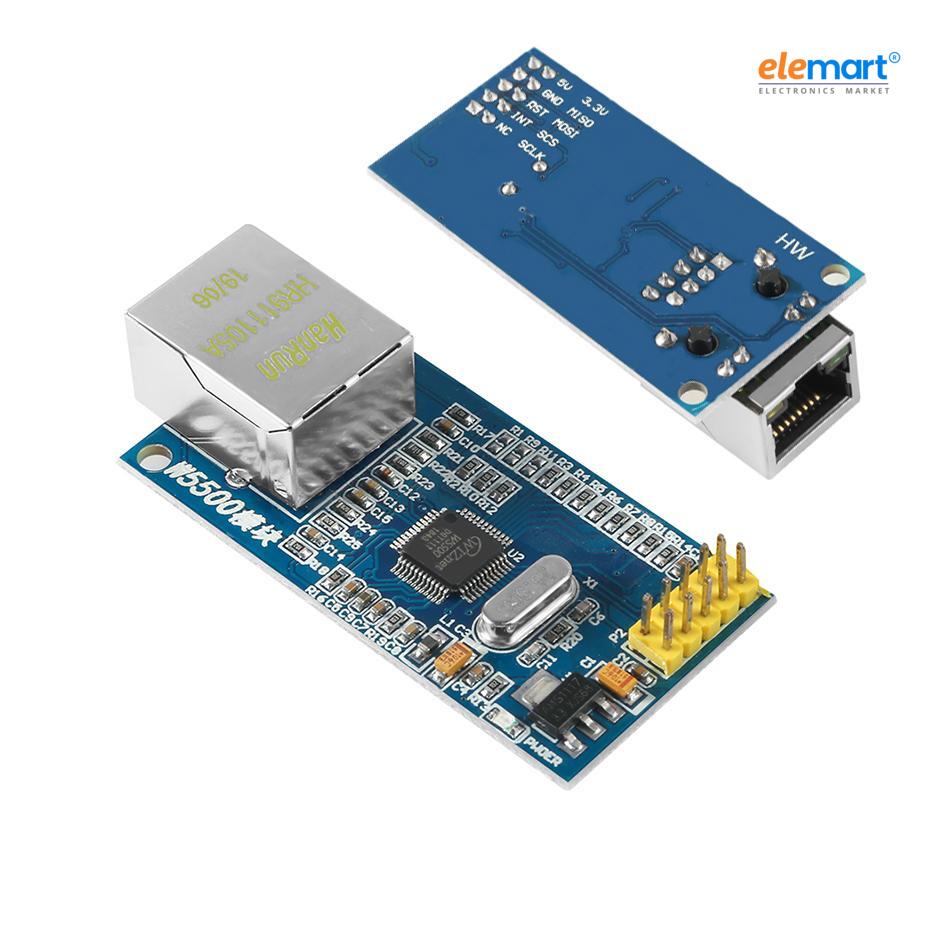

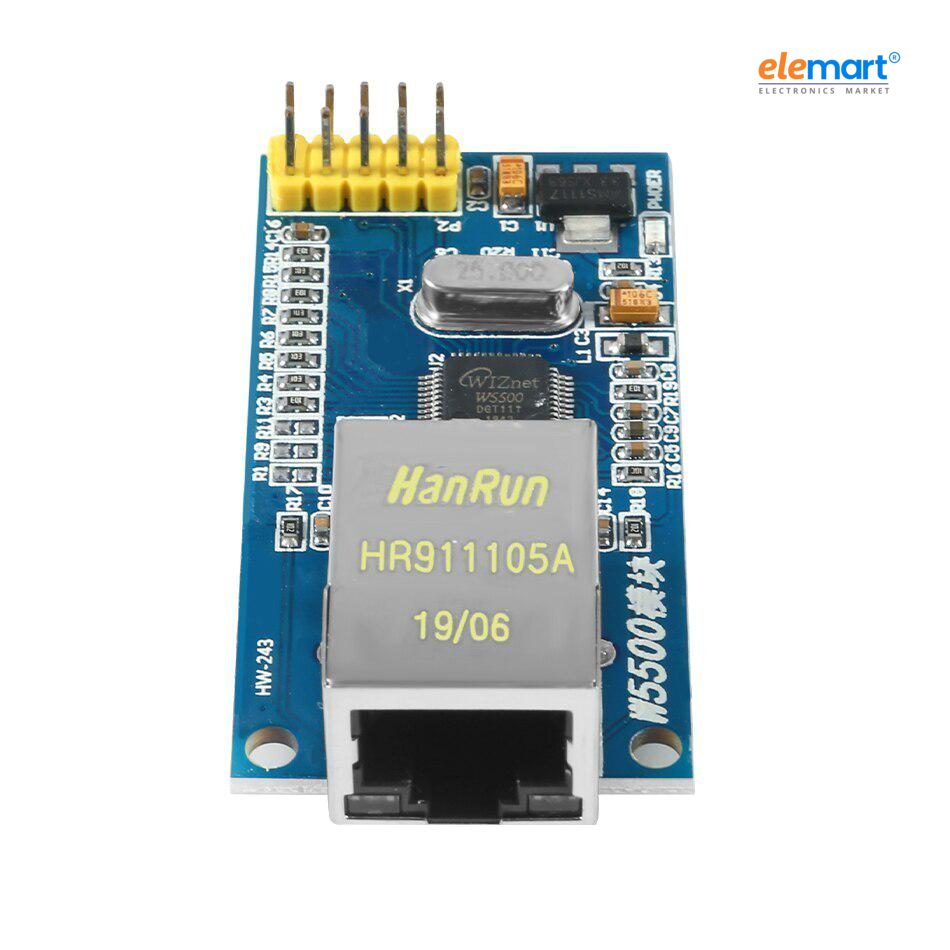

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module
Brand: ROBOTISM COMPONENTS
Features
- Based on WIZnet W5500 Ethernet Controller
- Built-in Hardware TCP/IP Protocol Stack
- Supports 10Base-T and 100Base-TX Ethernet
- SPI Interface with Clock Speed up to 80 MHz
- Supports 8 Simultaneous Independent Sockets
- Integrated Ethernet MAC and PHY
- Internal 32KB Tx/Rx Buffer Memory
- Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE Protocols
- Auto-Negotiation for Full-Duplex and Half-Duplex Modes
- Wake-on-LAN and Power-Down Support
- Compatible with Arduino, STM32, ESP32, AVR, PIC, and Other Microcontrollers
- RJ45 Ethernet Connector with Integrated Magnetics
₹619 (Incl. of all taxes)
₹507.58
+ ₹111.42 GSTStock: Available
Quantity based pricing table
| Select | Min Qty | Max Qty | Unit Price |
|---|---|---|---|
| 1 | 10 | ₹519 | |
| 11 | 30 | ₹479 | |
| 31 | 50 | ₹439 |
About this item
The W5500 Ethernet Network Module is a high-performance hardware TCP/IP embedded Ethernet controller designed for embedded networking applications. It integrates a complete TCP/IP stack, Ethernet MAC, and PHY, enabling reliable 10/100 Mbps Ethernet communication through a simple SPI interface. The module significantly reduces the processing load on the host microcontroller by handling network protocols in hardware.
Specifications
| Chip type | W5500 |
|---|---|
| Hardware Interface | Ethernet |
| Brand Name | ROBOTISM COMPONENTS |
| Compatible Devices | Desktop |
| Input Voltage (V) | 3.3 ~ 5 |
| Supports Hardwired TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Internal Memory (KByte) | 32 |
| Manufacturer Part Number | India |
