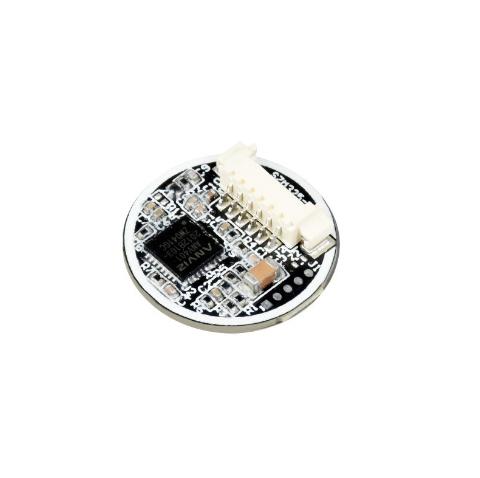

Waveshare Round-Shaped All-In-One Capacitive Fingerprint Sensor (D), Cortex Processor, 360° Verification
Brand: Waveshare
Features
- Easy to use by some simple commands, you don't have to know any fingerprint technology or the module infrastructure.
- The commercial fingerprinting algorithm supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification.
- Capacitive sensitive detection, just touch the collecting window lightly for fast verification.
- Highly integrated hardware, processor, and sensor in one small chip, suitable for small size applications.
- The narrow stainless steel rim supports 360° Omni-directional verification.
- Embedded human sensors, the processor will enter sleep automatically, and wake up when touching, lower power consumption.
- Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi.
₹2,059.00 (Incl. of all taxes)
₹1,688.38
+ ₹370.62 GSTStock: Available
Quantity based pricing table
| Select | Min Qty | Max Qty | Unit Price |
|---|---|---|---|
| 1 | 10 | ₹2,059 | |
| 11 | 30 | ₹2,019 | |
| 31 | 50 | ₹1,969 |
About this item
Based on a high-performance Cortex processor, combined with the high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicated fingerprinting algorithm, all you need to do is just send some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision Note: For more technical details go through the Datasheet in the attachment section
Specifications
| Item Type | Scanner |
|---|---|
| Model | Fingerprint Scanner |
| Sensor Type | Capacitive touch sensor |
| Display Resolution (pixel) | 508DPI |
| Resolution (pixels) | 160 x 160 |
| Dimensions (L x W x H) mm | R15.5mm |
| Matching Time | <500ms (1:N, and N ≤100) |
| Operating Current (mA) | <50mA |
