About this item

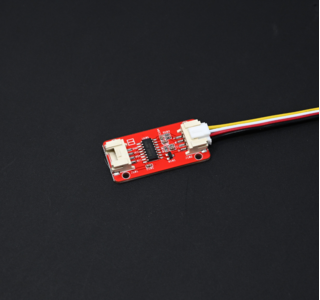

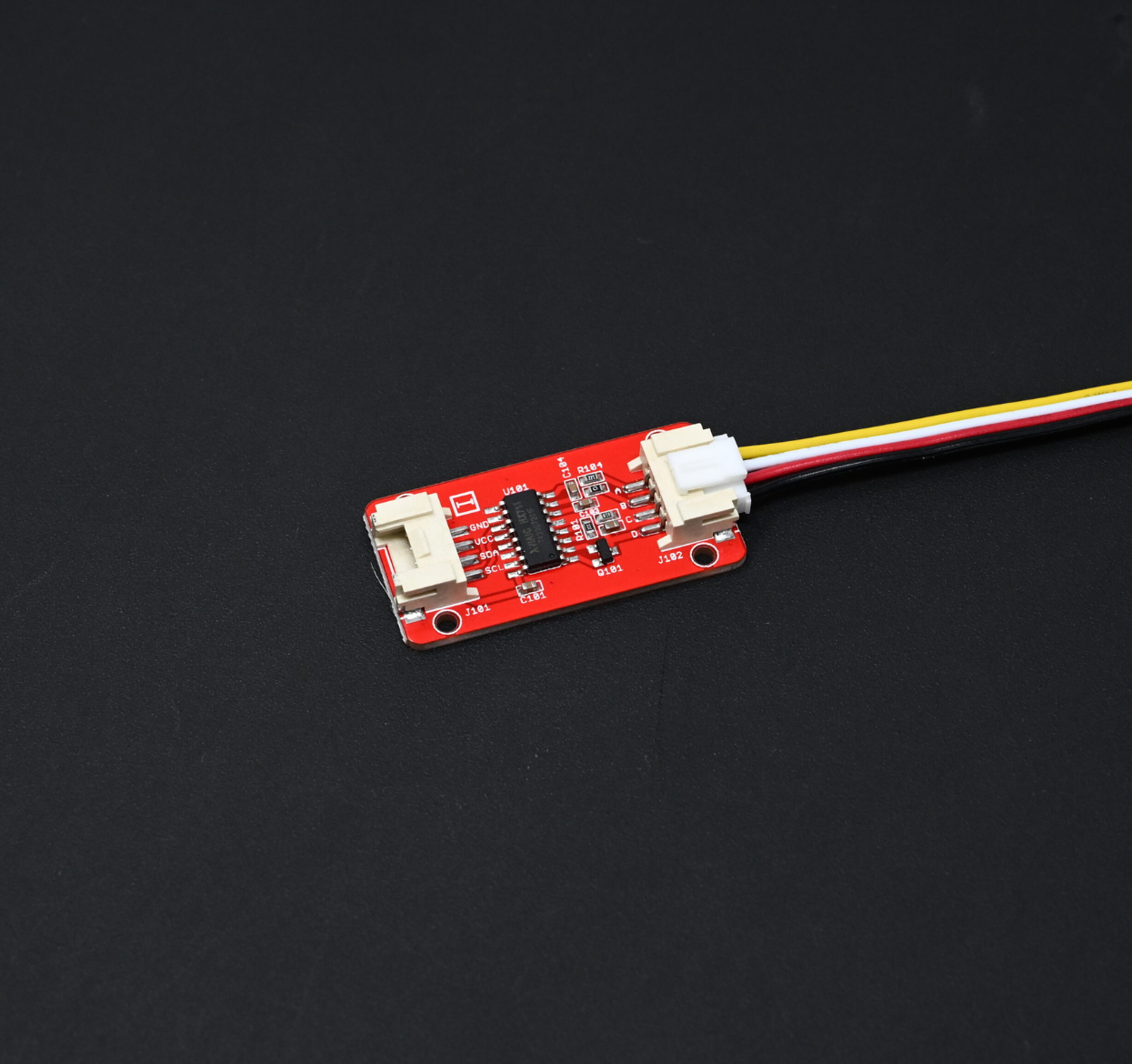

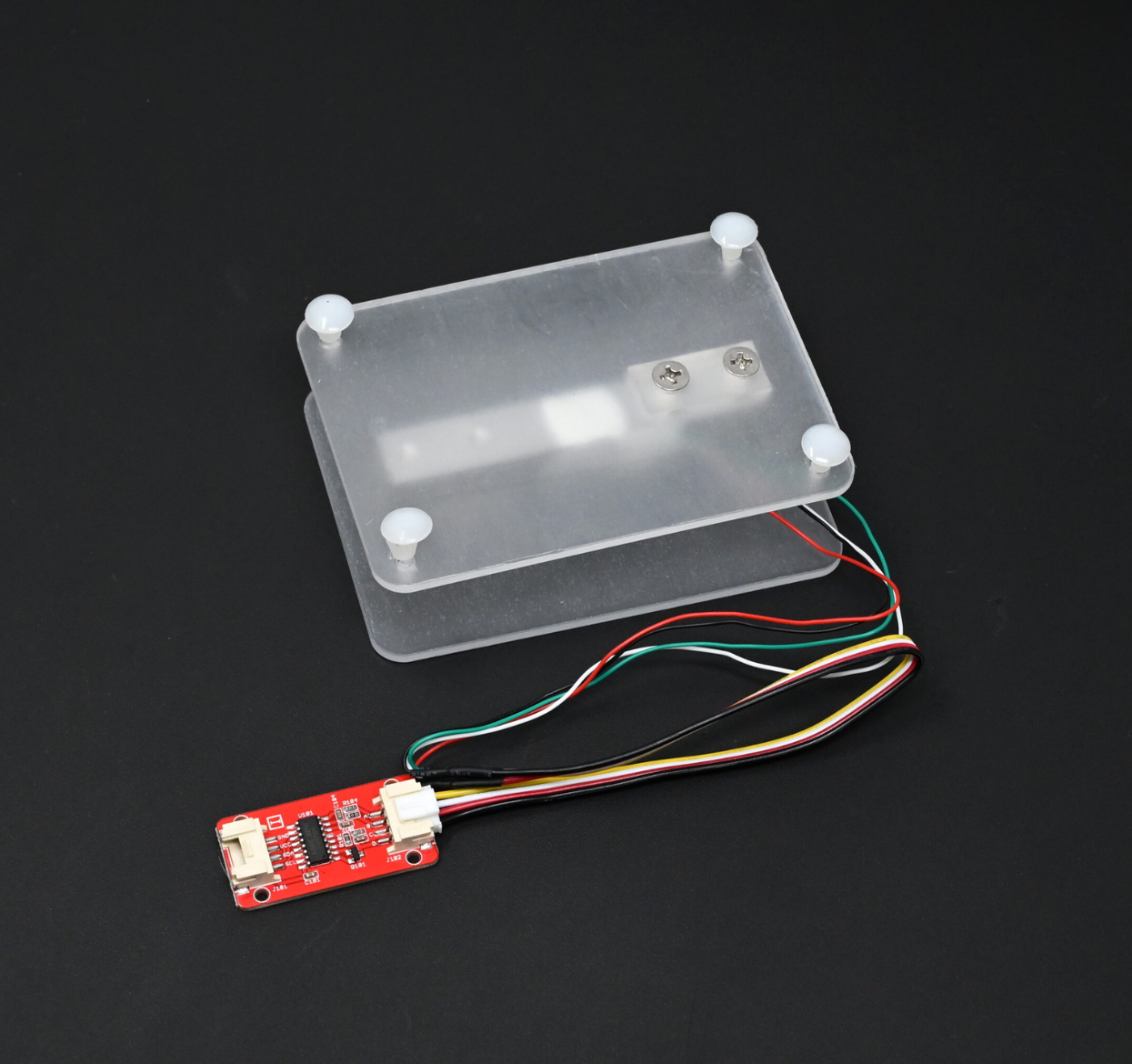

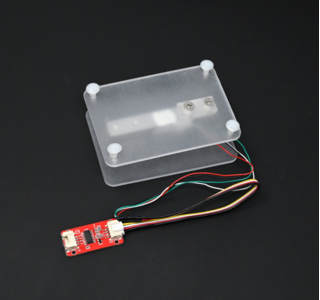

The ELECROW Crowtail‑Weight Sensor 2.0 is a compact and efficient load cell module designed for precise weight measurements in various applications. Utilizing the HX711 amplifier, this sensor can measure weights up to 3 kilograms with high accuracy, making it ideal for projects such as digital weighing scales, inventory management systems, and load monitoring devices. The module operates at a voltage of 5V DC and features a low standby current of 200 µA, ensuring energy efficiency in battery-powered applications. It comes with a Crowtail interface, allowing for easy integration with development boards like Arduino, Raspberry Pi, and ESP32. The sensor's small form factor (40.0 mm x 20.0 mm x 6.8 mm) enables seamless integration into custom enclosures or existing systems. Whether you're building a smart weighing scale, a load detection system, or any project requiring precise weight measurement, the ELECROW Crowtail‑Weight Sensor 2.0 offers a reliable and straightforward solution.
Specifications
| Operating Voltage |
5V DC |
| Operating Current |
400 mA |
| Standby Current |
200 Μa |
| Weight Measurement Capacity |
Up to 3 kg |
| Interface |
Crowtail 4‑pin connector (compatible with Crowtail base board) |
| Amplifier |
HX711 precision 24‑bit analog‑to‑digital converter |
| Operating Temperature Range |
-40°C to +85°C |
| Dimensions |
40.0 mm (L) x 20.0 mm (W) x 6.8 mm (H) |
