EDATEC CM4 IO Case for Raspberry Pi Compute Module 4
Brand: Edatec
Features
For B2B orders, contact us on
About this item

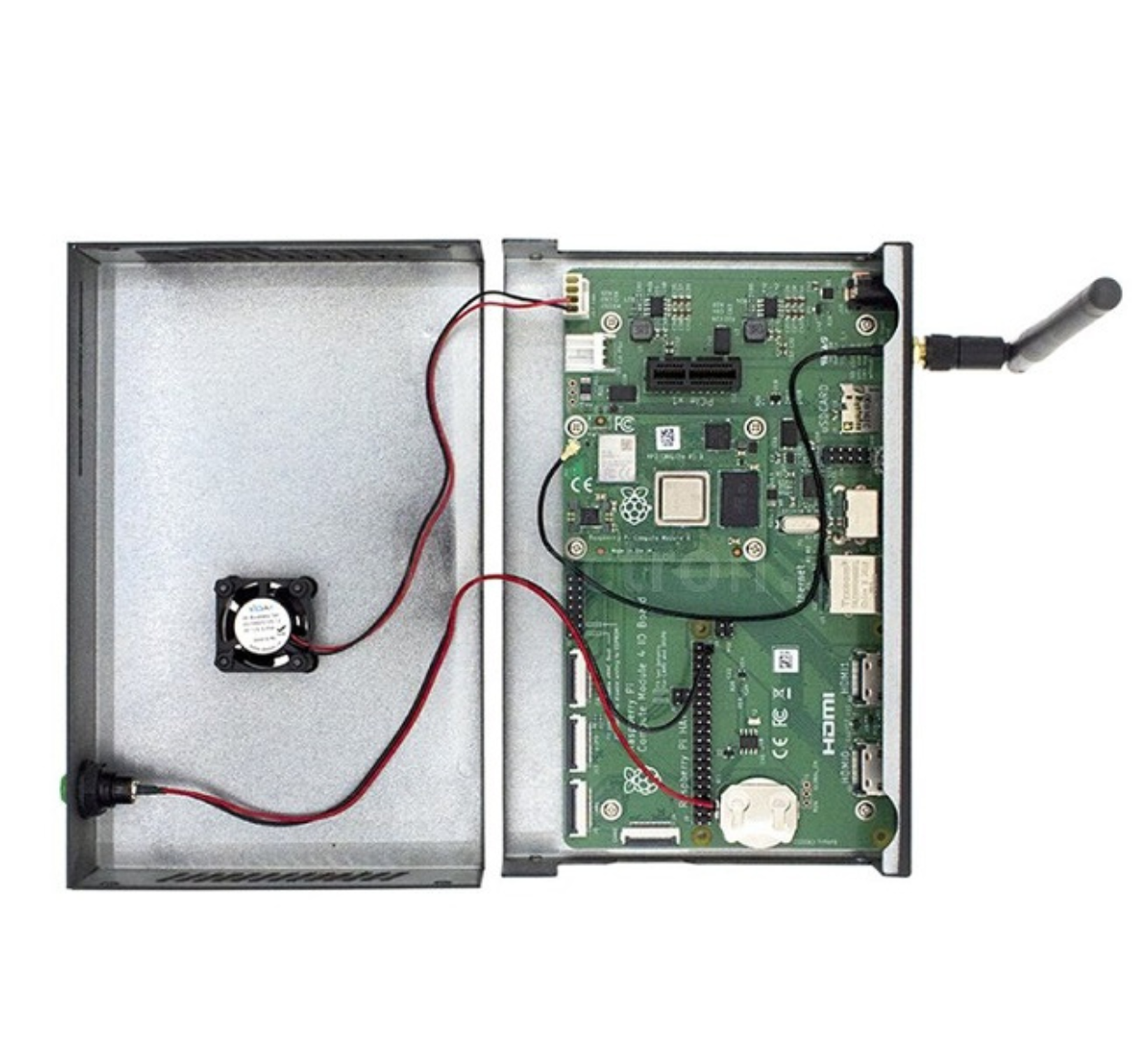

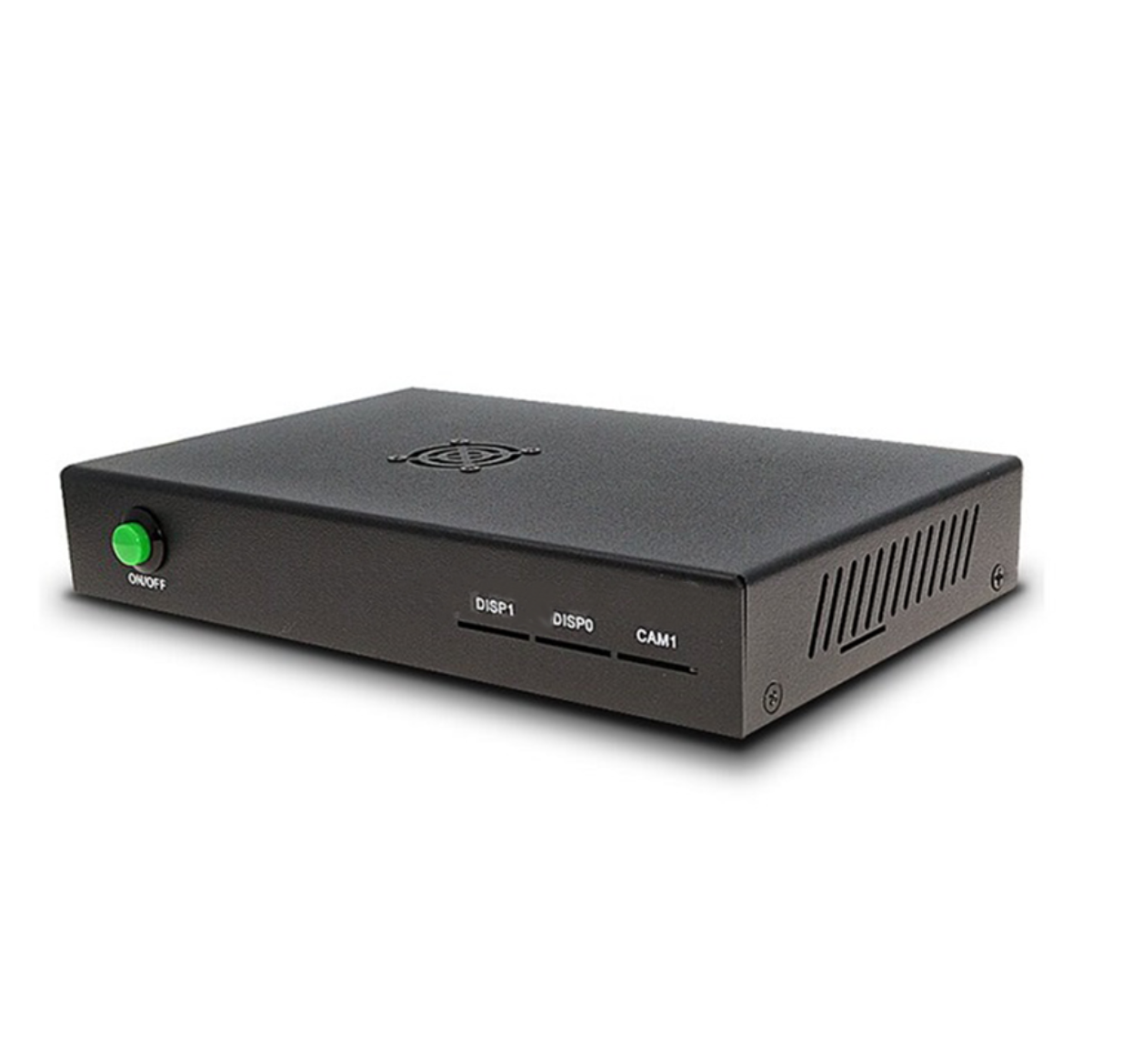

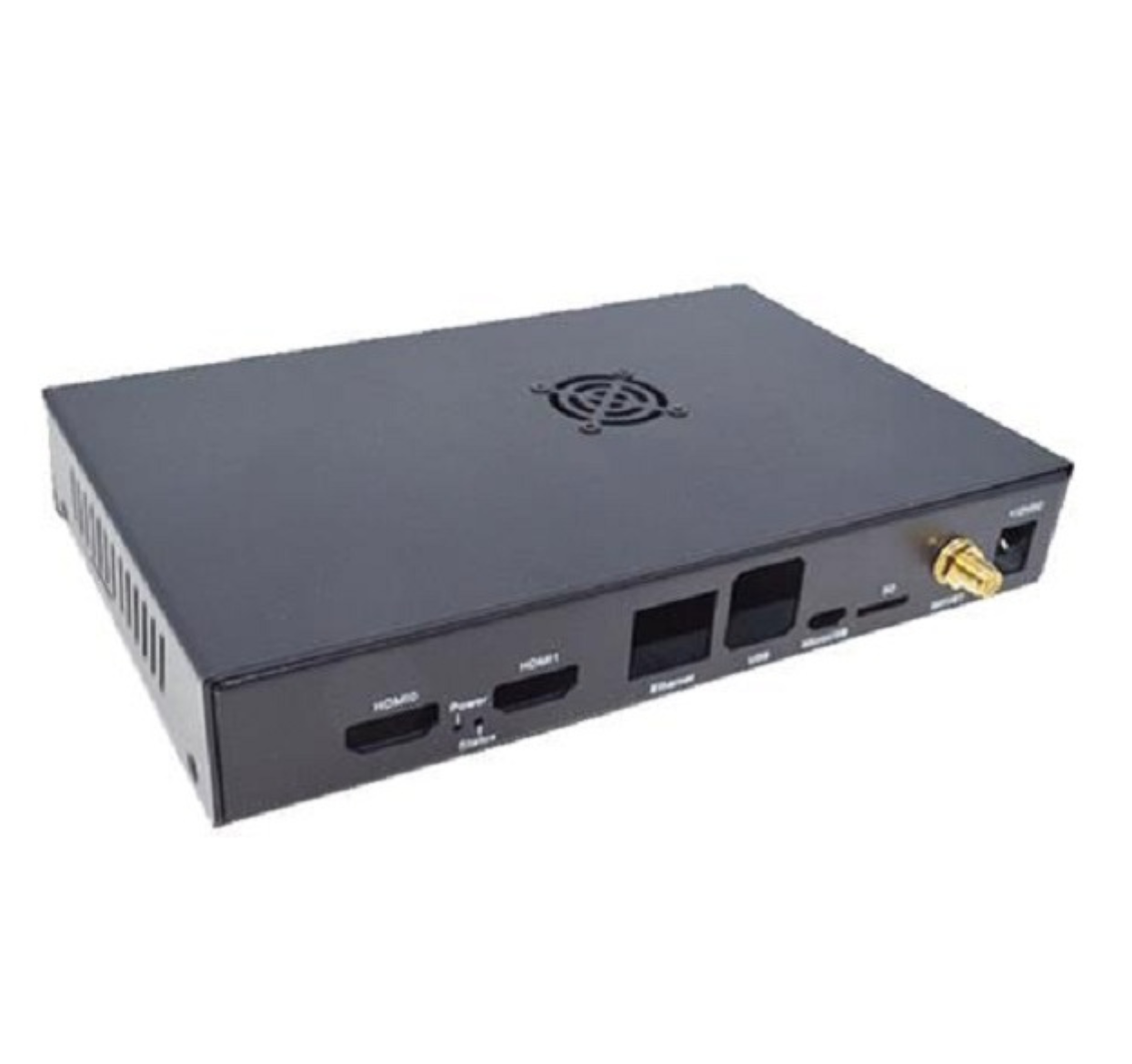

The EDATEC CM4 I/O Case is a sturdy metal enclosure designed to house the Raspberry Pi Compute Module 4 and its I/O board, creating a compact, industrial-grade computing unit. With dimensions of 171.5mm x 109.5mm x 28.5mm, the black-finished case offers excellent protection and cooling, featuring openings for HDMI, USB, Ethernet, and other interfaces. It includes a pushbutton power switch for easy system control and securely fixes the CM4 with nuts and nylon washers to prevent PCB damage. For enhanced thermal management, a silent 12V fan can be installed to reduce CPU temperatures by up to 20°C, aided by side ventilation slots. The case also integrates a certified 2.4G/5.8GHz WiFi/Bluetooth antenna and a CR2032 battery to support Real-Time Clock (RTC) functions. Designed for durability and reliable performance, this enclosure is ideal for industrial, automation, and embedded applications where stable operation of the Raspberry Pi CM4 is crucial.
Specifications
| Material: | Durable metal enclosure |
|---|---|
| Dimensions: | 171.5 mm × 109.5 mm × 28.5 mm |
| Weight: | Approximately 400 grams |
| Design: | Handheld form factor with cover included |
| Compatibility: | Specifically designed for Raspberry Pi Compute Module 4 (CM4) |
| Interfaces: | All CM4 I/O board interfaces (HDMI, USB, Ethernet, etc.) are accessible through the case |
| Antenna: | Provides a slot for an external 2.4GHz/5.8GHz WiFi/Bluetooth antenna |
| Real-Time Clock (RTC): | Features a battery socket for a CR2032 battery to enable RTC functionality |
