About this item

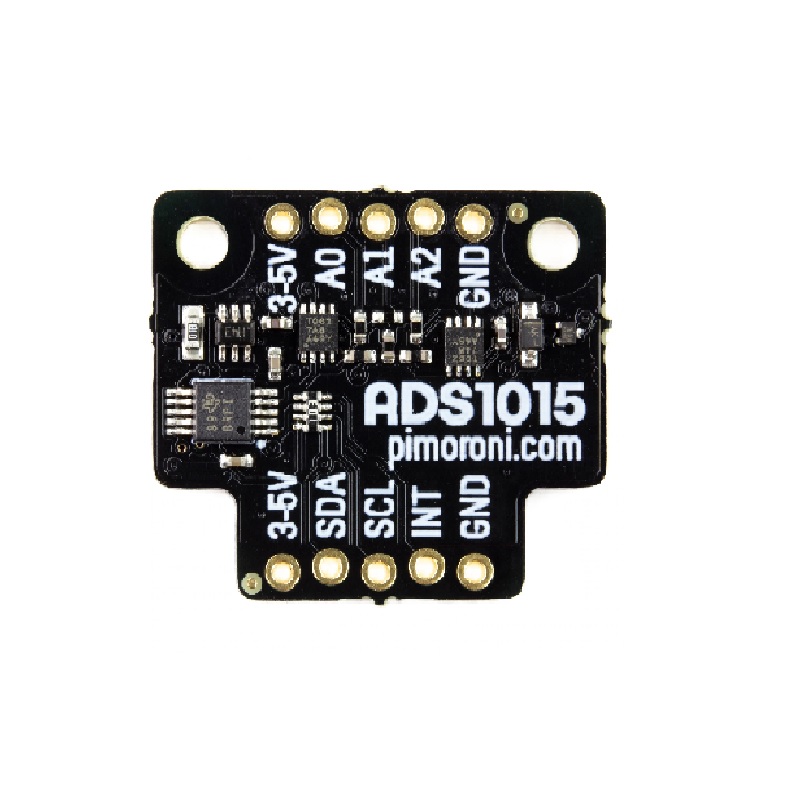

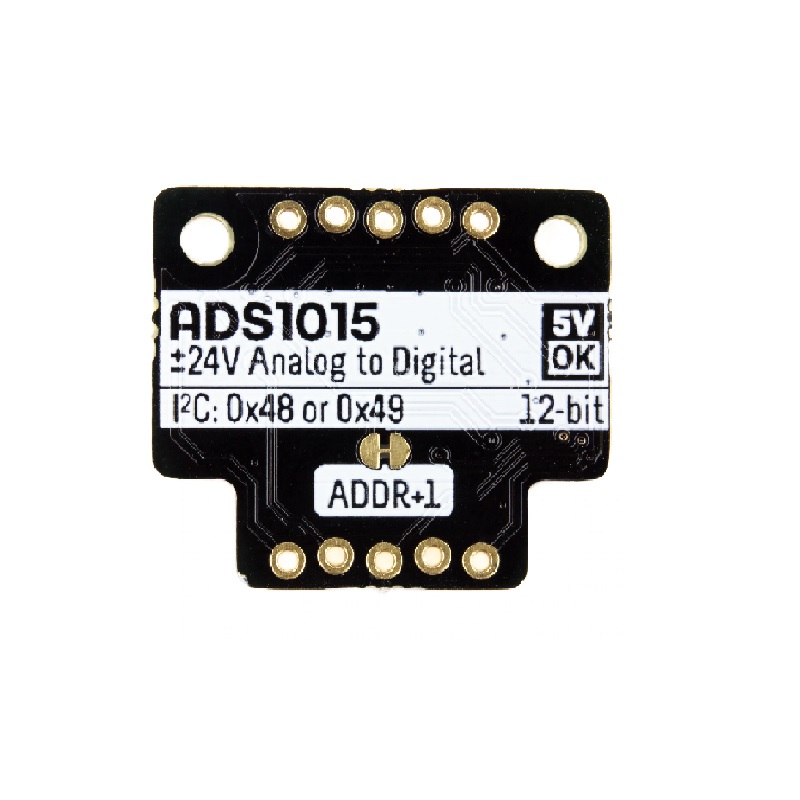

The ADS101x series—comprising the ADS1013, ADS1014, and ADS1015—is a family of precision, low-power, 12-bit analog-to-digital converters (ADCs) designed for efficient and accurate signal conversion in compact applications. These ADCs feature an I2C-compatible interface, making them easy to integrate with a wide variety of microcontrollers and embedded systems, including popular platforms like Arduino and Raspberry Pi.Housed in ultra-small packages such as the leadless X2QFN-10 and VSSOP-10, the ADS101x series is ideal for space-constrained designs where size and power consumption are critical. Despite their small footprint, these devices deliver high performance, with 12-bit resolution and a programmable data rate, ensuring precise analog input conversion suitable for sensors, battery monitoring, and other analog signal processing needs.The ADS1013 offers a single-ended input, while the ADS1014 and ADS1015 support multiple input configurations, including differential inputs, which allow for greater flexibility in measuring signals. With internal programmable gain amplifiers (PGAs), these ADCs can accommodate a wide range of input voltages. Low power consumption and shutdown modes contribute to energy-efficient designs, making the ADS101x series a versatile solution for portable and battery-powered projects.
