About this item

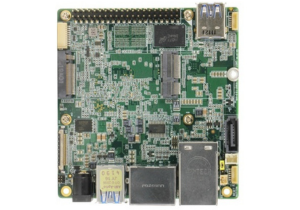

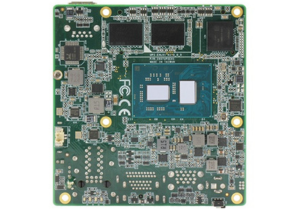

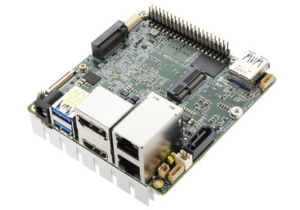

The AAEON UP Squared V2 Single Board Computer with Intel® Pentium® J6426 processor is a compact, high-performance embedded solution designed for industrial and edge computing applications. Powered by the quad-core Intel® Pentium® J6426 processor, it offers improved processing power and graphics performance compared to its predecessor. The board supports up to 16GB of LPDDR4 memory and up to 64GB of eMMC storage, providing ample resources for demanding applications. Its small form factor (3.37" x 3.54") allows for easy integration into space-constrained environments. The UP Squared V2 features enhanced graphics capabilities with Intel® UHD Graphics, supporting multiple display outputs including HDMI 1.4b, DisplayPort 1.2, and eDP 1.3, enabling up to three simultaneous 4K displays. Connectivity options include dual Gigabit Ethernet ports, multiple USB 3.2 Gen 2 Type-A ports, and optional Wi-Fi and Bluetooth via an M.2 2230 E-Key slot. Expansion capabilities are provided through an M.2 2280 M-Key slot and a SATA III connector, allowing for the addition of NVMe storage and other peripherals. Security features include onboard TPM 2.0, ensuring data protection in industrial applications. The board operates within a temperature range of 0°C to 60°C and consumes approximately 30W to 38W of power, making it suitable for continuous operation in industrial environments. With support for various operating systems, including Windows® 10, Windows IoT Core, and Linux distributions, the UP Squared V2 offers flexibility for developers and integrators seeking a reliable and compact computing solution.
