About this item

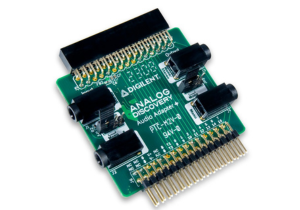

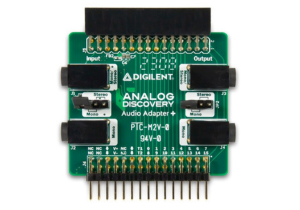

The Digilent Analog Discovery Audio Adapter+ is an essential accessory for users of the Analog Discovery 3, Analog Discovery 2, and Analog Discovery (Legacy) devices, enabling seamless integration with audio equipment for signal analysis and generation. This compact module features both mono and stereo 3.5 mm audio jacks, facilitating the connection of headphones, speakers, or external audio sources. The input and output signals are routed to the oscilloscope and waveform generator, respectively, allowing for comprehensive audio signal analysis and generation. The adapter is powered directly through the Analog Discovery device's 5V supply, ensuring a straightforward setup without the need for additional power sources. A pass-through connector is included, maintaining access to all other Analog Discovery signals, such as digital I/O, triggers, and power supplies, ensuring full functionality during audio applications. With its user-friendly design and compatibility with multiple Analog Discovery models, the Audio Adapter+ is an invaluable tool for audio engineers, educators, and hobbyists seeking to explore and manipulate audio signals in a versatile and efficient manner. Priced at ₹3,355 (inclusive of GST), it offers an affordable solution for enhancing the capabilities of your Analog Discovery device.
