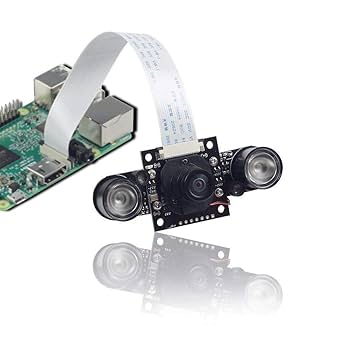

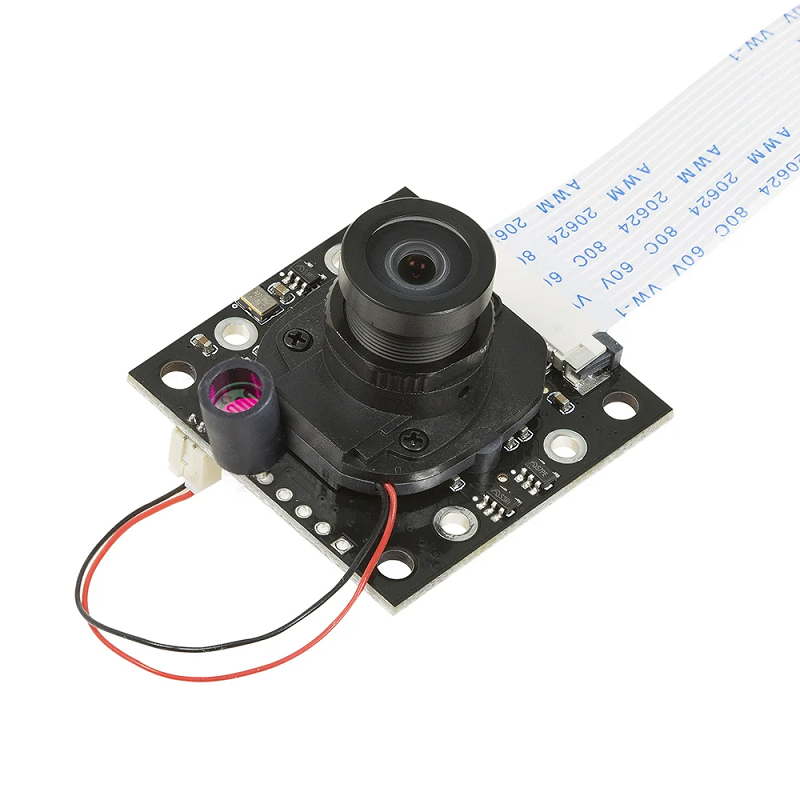

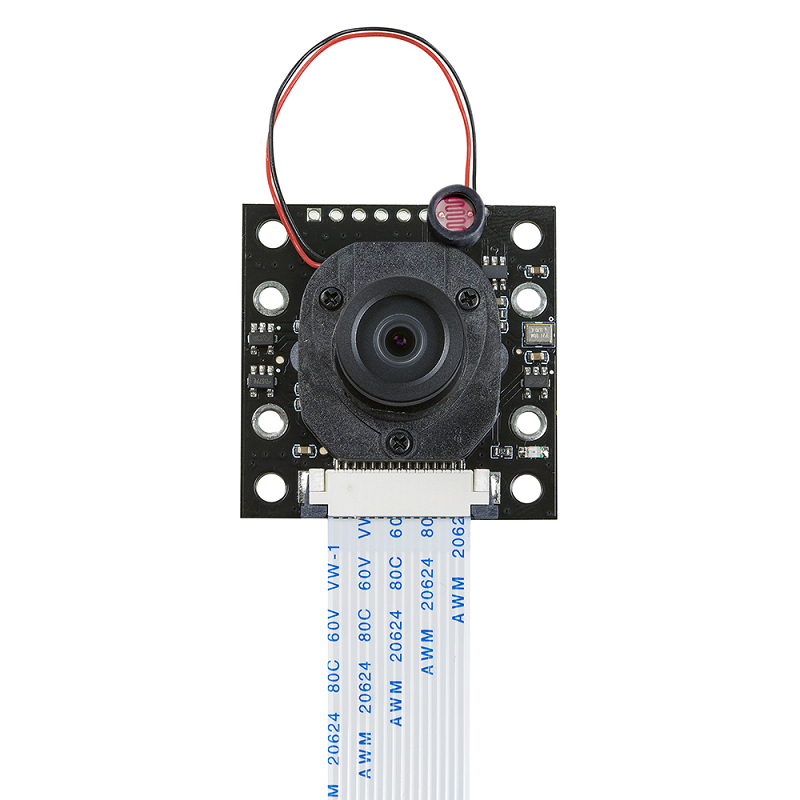

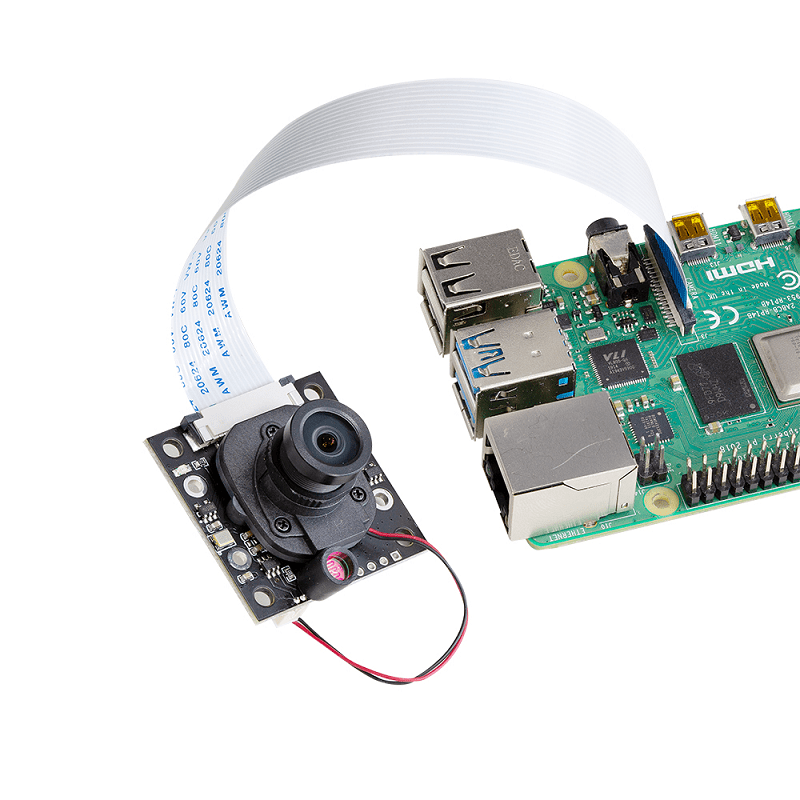

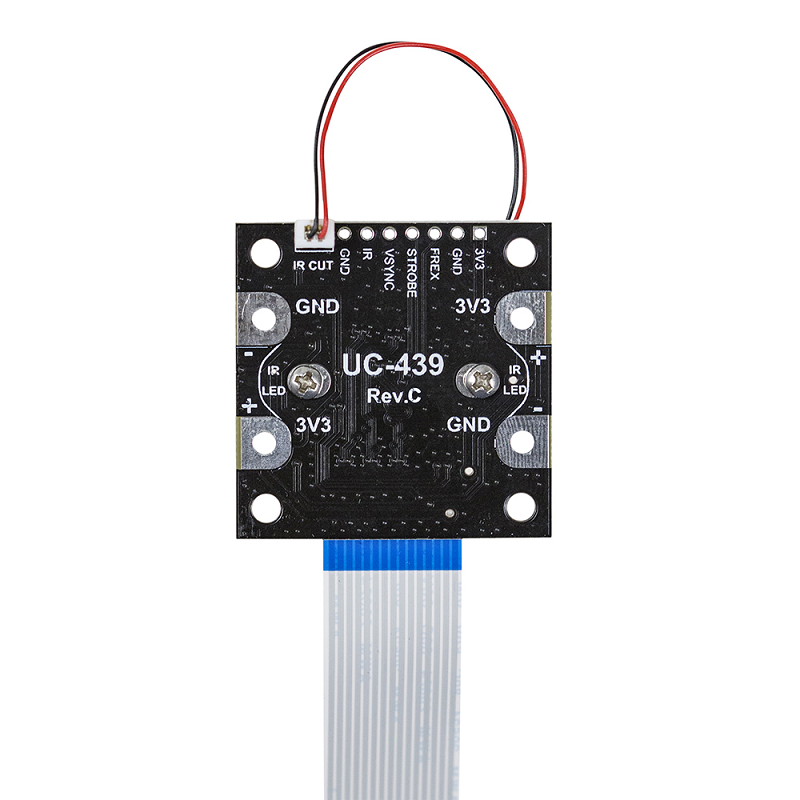

Arducam 5MP OV5647 NoIR Motorized IRcut Filter M12 Mount LS-30188 Lens Camera for Raspberry Pi
Brand: Arducam
Features
About this item
The Arducam 5MP OV5647 NoIR Camera with a motorized IR-Cut filter, M12 lens mount, and LS-30188 wide-angle lens is a versatile imaging solution designed for Raspberry Pi. Unlike standard Pi cameras, this model is IR-sensitive (NoIR), enabling both day and night vision. The built-in motorized IR-Cut filter automatically switches based on ambient lighting—offering true color images during the day and improved infrared sensitivity at night. Powered by the OmniVision OV5647 sensor, this camera supports up to 1080p video at 30fps and captures 5MP still images. The included LS-30188 wide-angle lens (via M12 mount) provides a broader field of view than standard lenses, ideal for surveillance, environmental monitoring, time-lapse, and computer vision projects. The motorized IR-cut system enhances flexibility for 24/7 imaging, while the M12 lens mount allows users to swap lenses for specific applications. It connects via the standard 15-pin MIPI CSI interface, making it fully compatible with Raspberry Pi models including Pi 4, 3B+, 3, and Zero. This camera is ideal for users needing a high-quality, multi-purpose camera module with enhanced day/night capability and optical flexibility.
Specifications
| Sensor | OmniVision OV5647, 5MP (2592 × 1944) |
|---|---|
| Lens Mount | M12 with LS-30188 wide-angle lens |
| Shutter Type | Rolling shutter |
| IR-CUT Filter | Motorized, automatic switching |
| IR Sensitivity | NoIR (infrared-sensitive) |
| Video Output | 1080p @ 30fps, 720p @ 60fps |
| Interface | 15-pin MIPI CSI for Raspberry Pi |
| Compatibility | Raspberry Pi 4, 3B+, 3, Zero, CM3, CM4 |
