About this item

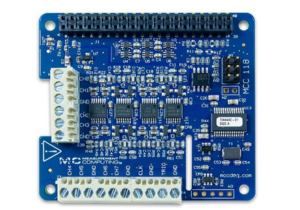

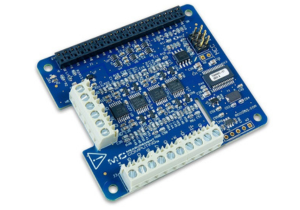

The Digilent MCC 118 is a high-performance voltage measurement DAQ HAT designed for the Raspberry Pi, offering eight single-ended 12-bit analog inputs with a ±10 V input range. It supports a maximum sample rate of 100 kS/s, which can aggregate up to 320 kS/s when stacking multiple boards. This capability makes it suitable for applications requiring high-speed data acquisition, such as sensor data logging, environmental monitoring, and industrial automation. The onboard sample buffers facilitate high-speed acquisition, allowing for efficient data collection without overloading the Raspberry Pi's processing capabilities. Additionally, the HAT features external scan clock I/O and an external digital trigger input, providing flexibility for synchronized sampling in complex measurement setups. Connectivity is made easy with screw terminal connections, ensuring secure and reliable signal connections. The MCC 118 is powered directly from the Raspberry Pi's 3.3V supply through the GPIO header, eliminating the need for an external power source. It is supported by the MCC DAQ HAT Library, which offers C/C++ and Python APIs, enabling seamless integration into custom applications. This HAT is ideal for developers seeking a compact, high-performance solution for voltage measurement in Raspberry Pi-based systems.
