About this item

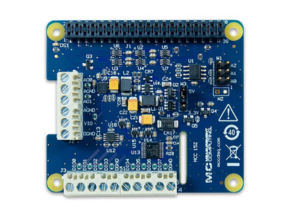

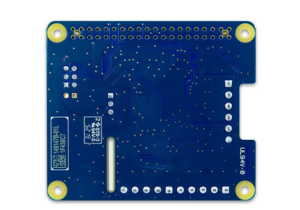

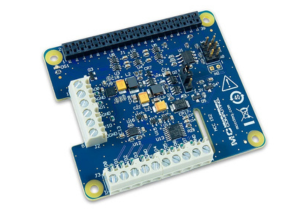

The Digilent MCC 152 is a versatile DAQ HAT designed for the Raspberry Pi, featuring two 12-bit analog voltage outputs with a 0–5V range and 5 mA sourcing capability, ideal for precise voltage control in automation and embedded projects. It also provides eight bidirectional digital I/O channels compatible with both 3.3V and 5V logic levels, each digital output capable of sourcing 10 mA and sinking 25 mA, with programmable pull-up or pull-down resistors on inputs. The analog outputs can be updated simultaneously for synchronized signal generation. Designed to stack seamlessly with the Raspberry Pi, multiple MCC 152 HATs can be connected for expanded throughput up to 320 kS/s, powered directly from the Pi’s 3.3V supply, eliminating the need for external power. Supported by the MCC DAQ HAT Library, it offers C/C++ and Python APIs for easy integration into custom applications. Compact and efficient, the MCC 152 is ideal for sensor data acquisition, automation systems, and embedded control, providing flexible analog and digital interfacing in a reliable and easy-to-use form factor.
